Oorspronkelijke prijs was: € 511,47.€ 240,39Huidige prijs is: € 240,39. incl.: € 290,87
4314-B-TVH FAG | EAN: 4012801512244 | (GTIN14: 04012801512244)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.
4314-B-TVH | 0167145390000 | EAN:4012801512244
Click here for factory productpage:4314-B-TVH (Medias Schaeffler)
| Gewicht | 3,99 kg |
|---|---|
| Structure group name | Deep groove ball bearings |
| Brand | FAG |
| EAN code | 4012801512244 |
| UNSPSC codeUNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. | 31-17-15-02 |
| eClass codeA eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. | 23-05-08-01 |
| eClass name | Deep groove ball bearing |
| Bore diameterInner diameter of the bearing | 70 mm |
| Outside diameter | 150 mm |
| Width | 51 mm |
| Radial internal clearanceBearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) | CNNormal internal clearance (C Normal) |
| Sealing | Without |
| Basic dynamic load ratingThe basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings | 156 kN |
| Basic static load ratingThe basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. | 131 kN |
| Limiting speed | 3550 r/min |
| Reference speed | 4200 r/min |
| Bore type | Cylindrical |
| CageSteel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass | Solid cage made of glass-fiber reinforced polyamid PA66 |
| Lubricant | Bearing not greased |
Deze tabel bevat technische gegevens voor dit Schaeffler product, verdeeld in secties zoals inbouwmaten, berekeningsgegevens, tekeningmaatgegevens en bijvoorbeeld materialen en montage-informatie.
 |
||
| Je huidige product variant: 4314-B-TVH | ||
|---|---|---|
| Beschrijving | Parameter | Waarde |
| Ontwerpvariant | B | Lager zonder vul mogelijkheid |
| Kooi | TVH | Massieve kooi gemaakt van glasvezelversterkt polyamide PA66 |
| Radiale speling | CN (Group N) | Normale inwendige speling |
  |
||
| Belangrijkste afmetingen en prestatiegegevens | ||
| Parameter | Waarde | Beschrijving |
| d | 70mm | Boring diameter |
| D | 150mm | Buitendiameter |
| B | 51mm | Breedte |
| Cr | 156 kN | Dynamische basisbelasting, radiaal |
| C0r | 131 kN | Statische basisbelasting, radiaal |
| Cur | 7.9 kN | Vermoeiingsbelastingslimiet, radiaal |
| nG | 4150 r/min | Maximaal toerental |
| nϑr | 4200 r/min | Referentietoerental |
| ≈m | 3.99kg | Gewicht |
| Montageafmetingen | ||
| Parameter | Waarde | Beschrijving |
| da min | 82mm | Minimale diameter asstap |
| Da max | 138mm | Maximale diameter behuizingsschouder |
| ra max | 2.1mm | Maximale afrondingsradius |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| rmin | 2.1mm | Minimale afschuiningsmaat |
| D1 | 127.1mm | Schouderdiameter buitenring |
| d1 | 97.3mm | Schouderdiameter binnenring |
| Temperatuurbereik | ||
| Parameter | Waarde | Beschrijving |
| Tmin | -20°C | Minimale bedrijfstemperatuur |
| Tmax | 120°C | Maximale bedrijfstemperatuur |
| Berekeningsfactoren | ||
| Parameter | Waarde | Beschrijving |
| f0 | 13.7 | Berekeningsfactor |
This table contains technical specifications for this product, organized into sections such as installation dimensions, calculation data, drawing dimensions, and information on materials and installation.
|
|
||
| Your current product variant | ||
|---|---|---|
| Parameter | Value | Description |
| Design variant | B | Bearing without filling slot |
| Cage | TVH | Solid cage made of glass-fiber reinforced polyamid PA66 |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
|
|

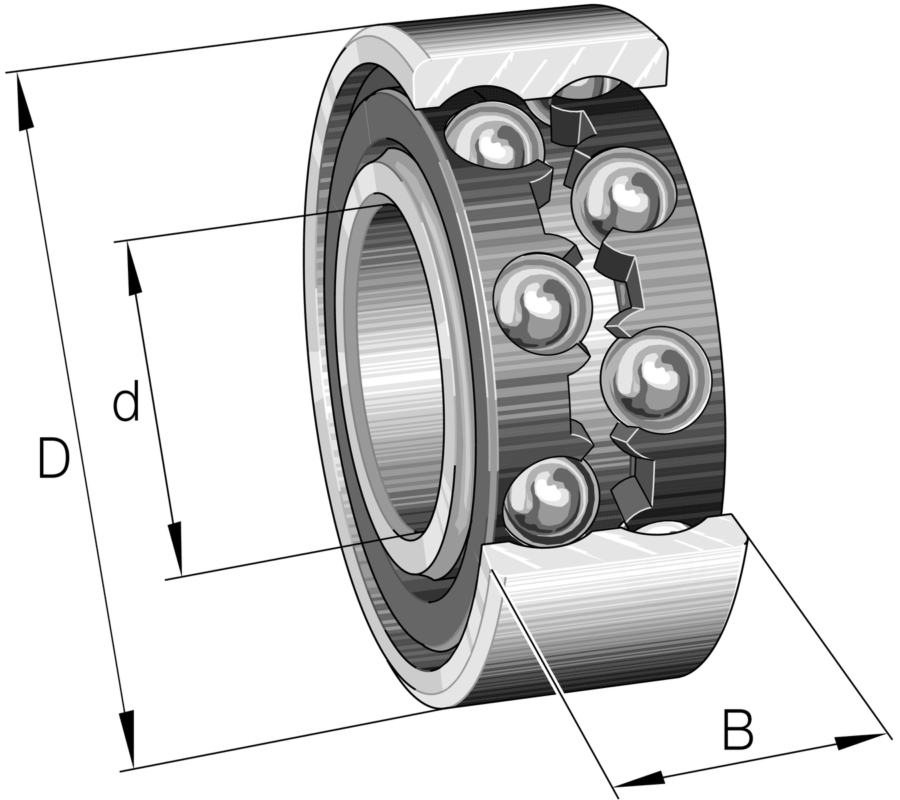

||
| Main Dimensions & Performance Data | ||
| Parameter | Value | Description |
| d | 70mm | Bore diameter |
| D | 150mm | Outside diameter |
| B | 51mm | Width |
| Cr | 156,000N | Basic dynamic load rating, radial |
| C0r | 131,000N | Basic static load rating, radial |
| Cur | 7,900N | Fatigue load limit, radial |
| nG | 4,1501/min | Limiting speed |
| nϑr | 4,2001/min | Reference speed |
| ≈m | 3.99kg | Weight |

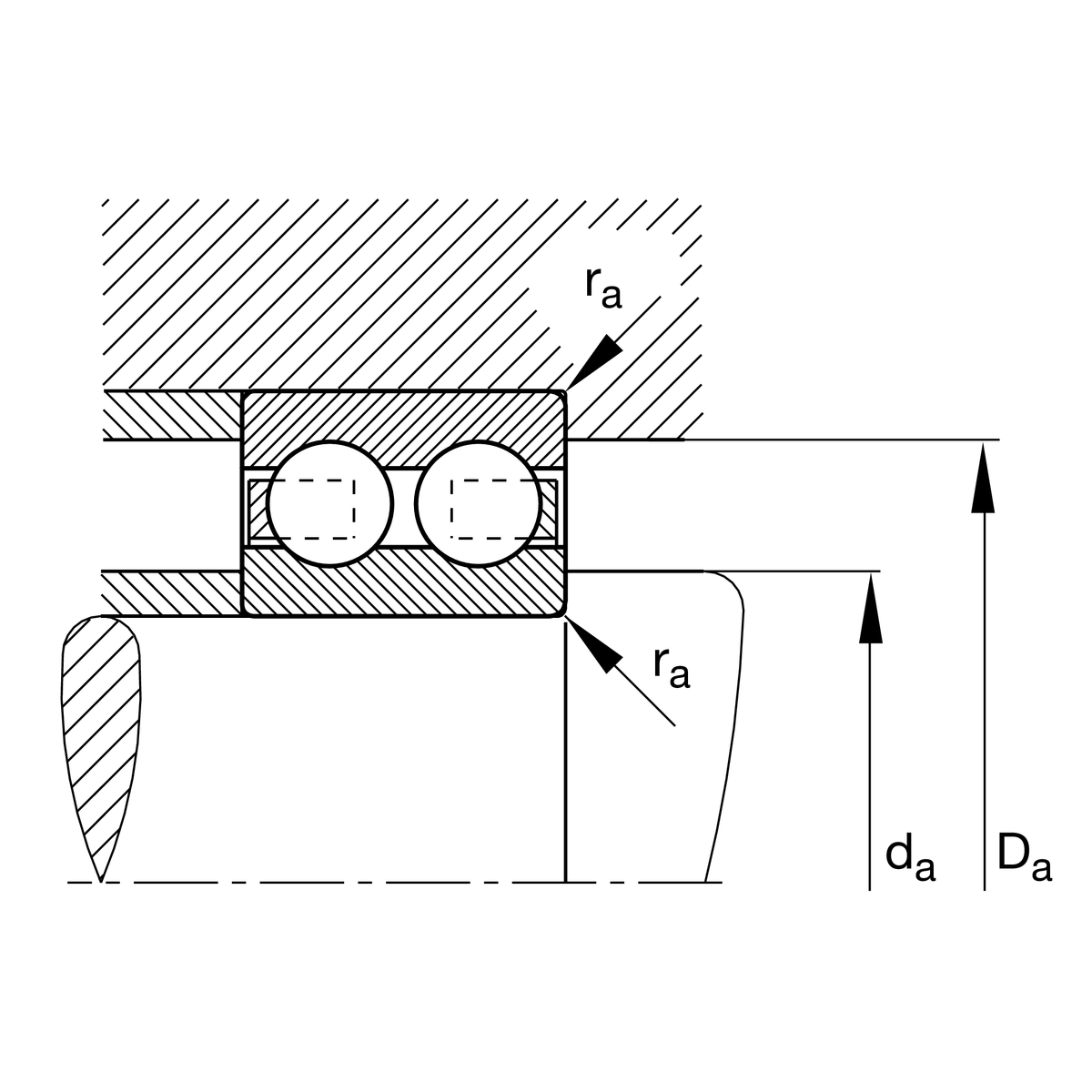

| Mounting dimensions | ||
| Parameter | Value | Description |
| da min | 82mm | Minimum diameter shaft shoulder |
| Da max | 138mm | Maximum diameter of housing shoulder |
| ra max | 2.1mm | Maximum fillet radius |

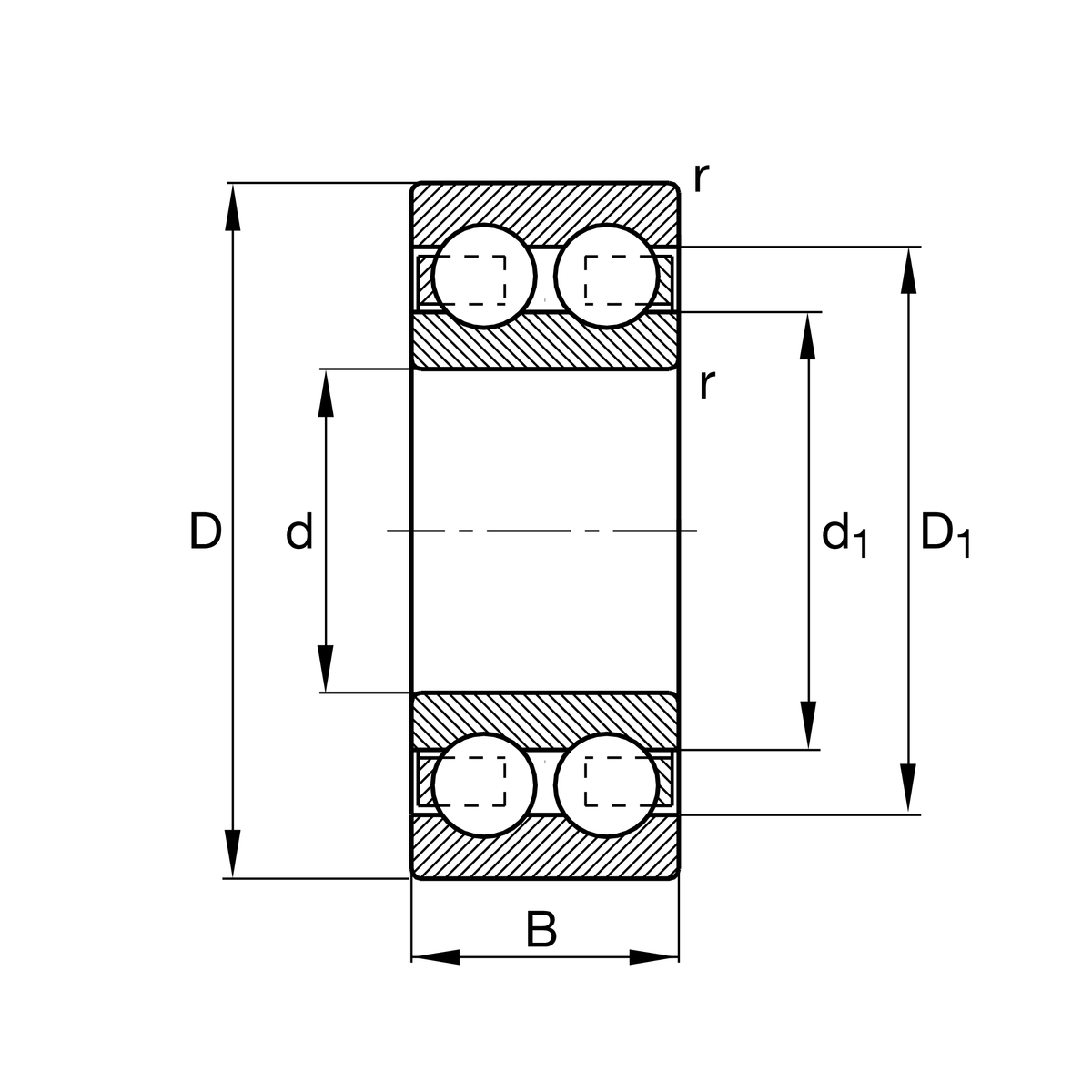

| Dimensions | ||
| Parameter | Value | Description |
| rmin | 2.1mm | Minimum chamfer dimension |
| D1 | 127.1mm | Shoulder diameter outer ring |
| d1 | 97.3mm | Shoulder diameter inner ring |
| Temperature range | ||
| Parameter | Value | Description |
| Tmin | -20°C | Operating temperature min. |
| Tmax | 120°C | Operating temperature max. |
| Calculation factors | ||
| Parameter | Value | Description |
| f0 | 13.7 | Calculation factor |
