Oorspronkelijke prijs was: € 19,86.€ 9,93Huidige prijs is: € 9,93. incl.: € 12,02
202-XL-KRR INA | EAN: 4012802783582 | (GTIN14: 04012802783582)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.
202-XL-KRR | 0008072060000 | EAN:4012802783582
Click here for factory productpage:202-XL-KRR (Medias Schaeffler)
| Gewicht | 0,05 kg |
|---|---|
| Structure group name | Deep groove ball bearings |
| Brand | INA |
| EAN code | 4012802783582 |
| UNSPSC codeUNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. | 31-17-15-02 |
| eClass codeA eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. | 23-05-08-01 |
| eClass name | Deep groove ball bearing |
| Bore diameterInner diameter of the bearing | 15 mm |
| Outside diameter | 35 mm |
| Width | 14.4 mm |
| Sealing type | Contact seal |
| Sealing | Seal on both sides |
| Seal Suffix | 2RS1 (NBR) |
| Seal Suffix short | -KRR |
| Basic dynamic load ratingThe basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings | 8.1 kN |
| Basic static load ratingThe basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. | 3.7 kN |
| Bore type | Cylindrical |
| CageSteel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass | Sheet metal |
Deze tabel bevat technische gegevens voor dit Schaeffler product, verdeeld in secties zoals inbouwmaten, berekeningsgegevens, tekeningmaatgegevens en bijvoorbeeld materialen en montage-informatie.
 |
||
| Je huidige product variant: 202-XL-KRR | ||
|---|---|---|
| Beschrijving | Parameter | Waarde |
| Afdichting | KRR | Lipafdichtingen aan beide zijden |
 |
||
| Belangrijkste afmetingen en prestatiegegevens | ||
| Parameter | Waarde | Beschrijving |
| d | 15mm | Boring diameter |
| D | 35mm | Buitendiameter |
| B | 14.4mm | Breedte |
| Cr | 8.1 kN | Dynamische basisbelasting, radiaal |
| C0r | 3.7 kN | Statische basisbelasting, radiaal |
| ≈m | 0.05kg | Gewicht |
| Dimensions | ||
| Parameter | Waarde | Beschrijving |
| D1 | 28.8mm | Buitendiameter afdichting |
| C | 11mm | Breedte buitenring |
| C2 | 11mm | Totale breedte afdichting |
| d1 | 21.5mm | Ribdiameter binnenring |
| Calculation factors | ||
| Parameter | Waarde | Beschrijving |
| f0 | 13.1 | Berekeningsfactor |
Deze tabel bevat technische gegevens voor dit product, verdeeld in secties zoals inbouwmaten, berekeningsgegevens, tekeningmaatgegevens en bijvoorbeeld materialen en montage-informatie.
|
|
||
| Your current product variant | ||
|---|---|---|
| Parameter | Value | Description |
| Sealing | KRR | Lip seals on both sides |
|
|
||
| Main Dimensions & Performance Data | ||
| Parameter | Value | Description |
| d | 15mm | Bore diameter |
| D | 35mm | Outside diameter |
| B | 14.4mm | Width |
| Cr | 8,100N | Basic dynamic load rating, radial |
| C0r | 3,700N | Basic static load rating, radial |
| ≈m | 0.05kg | Weight |

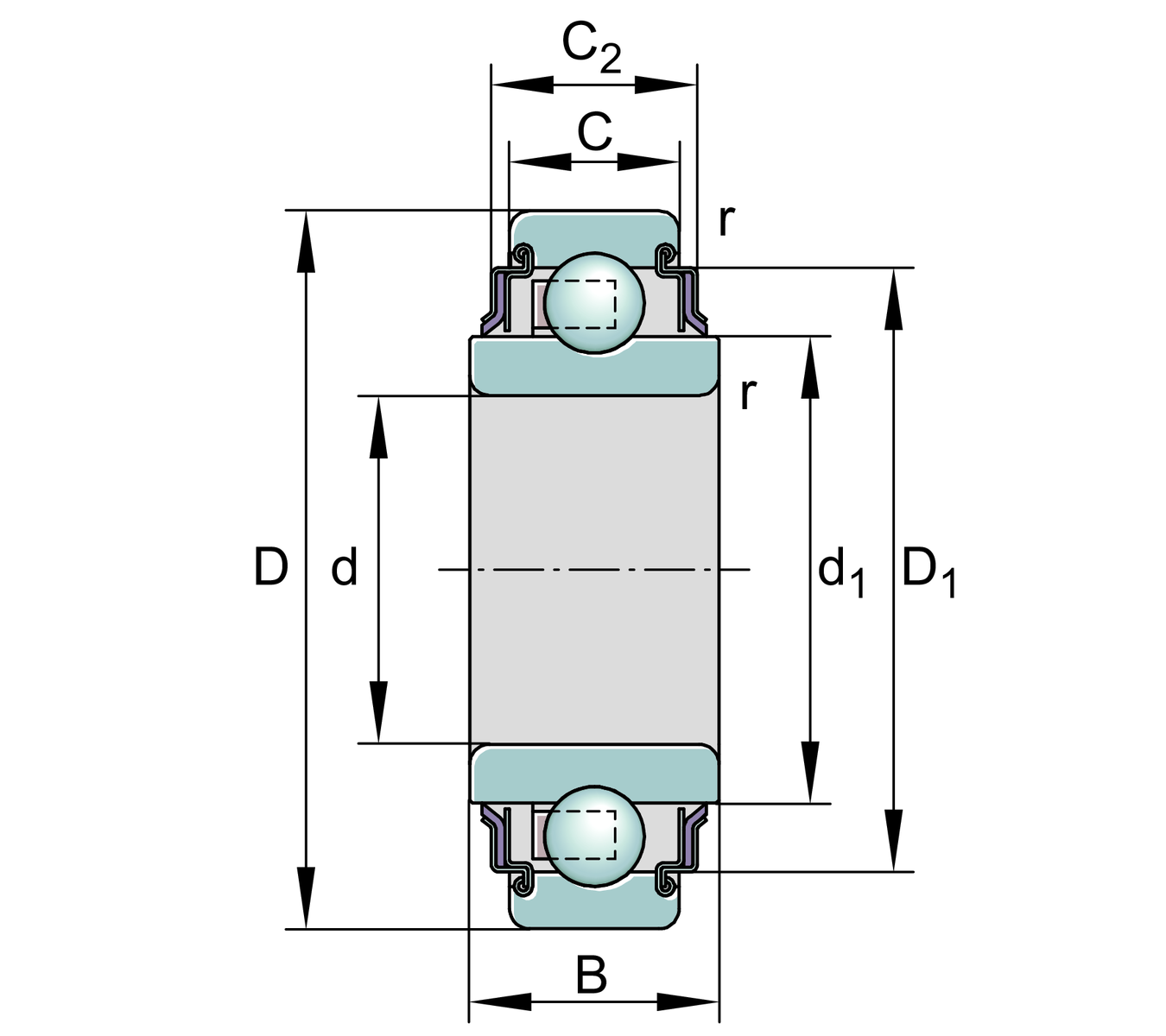

| Dimensions | ||
| Parameter | Value | Description |
| D1 | 28.8mm | Outside diameter seal |
| C | 11mm | Width, outer ring |
| C2 | 11mm | Sealing total width |
| d1 | 21.5mm | Rib diameter inner ring |
| Calculation factors | ||
| Parameter | Value | Description |
| f0 | 13.1 | Calculation factor |
