Oorspronkelijke prijs was: € 121,21.€ 60,61Huidige prijs is: € 60,61. incl.: € 73,34
F-673270.05.TILL INA | EAN: 4064327142795 | (GTIN14: 04064327142795)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.
F-673270.05.TILL | 0963957370000 | All known EAN:

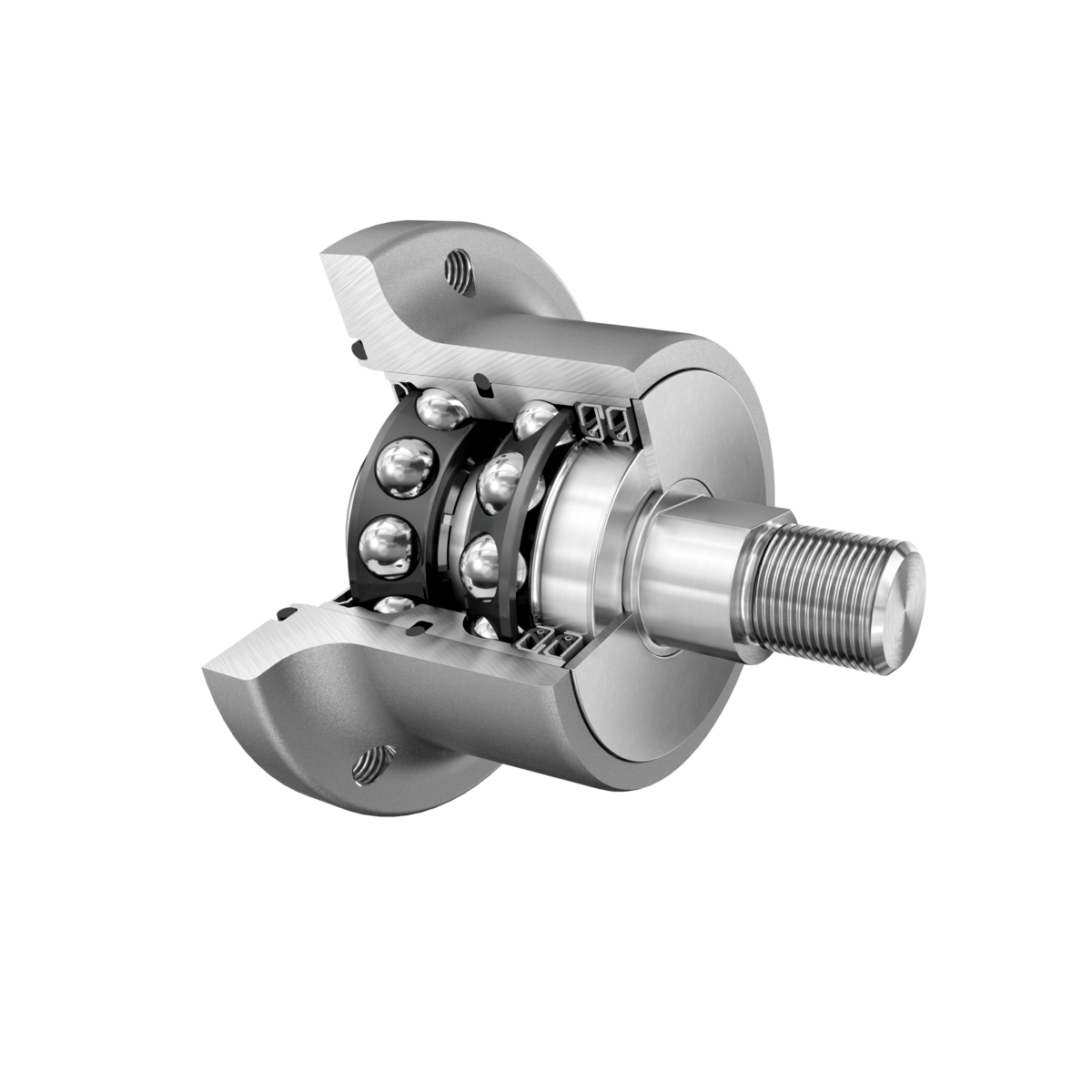

Click here for factory productpage:F-673270.05.TILL (Medias Schaeffler)
| Gewicht | 2,6 kg |
|---|---|
| Structure group name | Deep groove ball bearings |
| Brand | INA |
| EAN code | 4064327142795 |
| UNSPSC codeUNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. | 31-17-15-01 |
| eClass codeA eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. | 23-05-90-90 |
| eClass name | Spherical plain bearing (other, unspecified) |
| Bore diameterInner diameter of the bearing | 32 mm |
| Outside diameter | 81.6 mm |
| Width | 117 mm |
| Basic dynamic load ratingThe basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings | 50 kN |
| Basic static load ratingThe basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. | 40 kN |
| Bore type | Cylindrical |
Deze tabel bevat technische gegevens voor dit Schaeffler product, verdeeld in secties zoals inbouwmaten, berekeningsgegevens, tekeningmaatgegevens en bijvoorbeeld materialen en montage-informatie.
 |
||
| Je huidige product variant: F-673270.05.TILL | ||
|---|---|---|
  |
||
| Belangrijkste afmetingen en prestatiegegevens | ||
| Parameter | Waarde | Beschrijving |
| d | 32mm | Boutdiameter |
| D | 81.6mm | Buitendiameter behuizing |
| D1 | 117mm | Flensdiameter |
| B | 102mm | Totale hoogte eenheid |
| Cr | 50 kN | Dynamische basisbelasting, radiaal |
| C0r | 40 kN | Statische basisbelasting, radiaal |
| ≈m | 2.6kg | Gewicht |
| Montageafmetingen | ||
| Parameter | Waarde | Beschrijving |
| J | 98mm | Steekcirkeldiameter (gaten) |
| d1 | 28mm | Adapterdiameter |
| d2 | M12x1,25 | Bevestigingsboring metrisch |
| d3 | 25.5mm | Lengte borginrichting |
| G | M22x1,5 | Aansluitschroefdraad |
| lG | 28.5mm | Schroefdraadlengte |
| a3 | 12mm | Breedte adapter |
| n | 5 | Aantal schroefgaten |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| D2 | 70mm | Buitendiameter lager |
| B1 | 12mm | Flensdikte |
| B2 | 61.5mm | Hoogte behuizing |
This table contains technical specifications for this product, organized into sections such as installation dimensions, calculation data, drawing dimensions, and information on materials and installation.
|
|
||
| Your current product variant | ||
|---|---|---|
|
|
||
| Main Dimensions & Performance Data | ||
| Parameter | Value | Description |
| d | 32mm | Bolt diameter |
| D | 81.6mm | Outer diameter housing |
| D1 | 117mm | Diameter flange |
| B | 102mm | Total height unit |
| Cr | 50,000N | Basic dynamic load rating, radial |
| C0r | 40,000N | Basic static load rating, radial |
| ≈m | 2.6kg | Weight |
| Mounting dimensions | ||
| Parameter | Value | Description |
| J | 98mm | Pitch circle diameter (holes) |
| d1 | 28mm | Diameter adapter |
| d2 | M12x1,25 | Fixing bore metric |
| d3 | 25.5mm | Length locking device |
| G | M22x1,5 | Connection thread |
| lG | 28.5mm | Length thread |
| a3 | 12mm | Width of adapter |
| n | 5 | Number of screwing holes |
| Dimensions | ||
| Parameter | Value | Description |
| D2 | 70mm | Outer diameter bearing |
| B1 | 12mm | Thickness of flange |
| B2 | 61.5mm | Height housing |
