Oorspronkelijke prijs was: € 34,63.€ 17,32Huidige prijs is: € 17,32. incl.: € 20,96

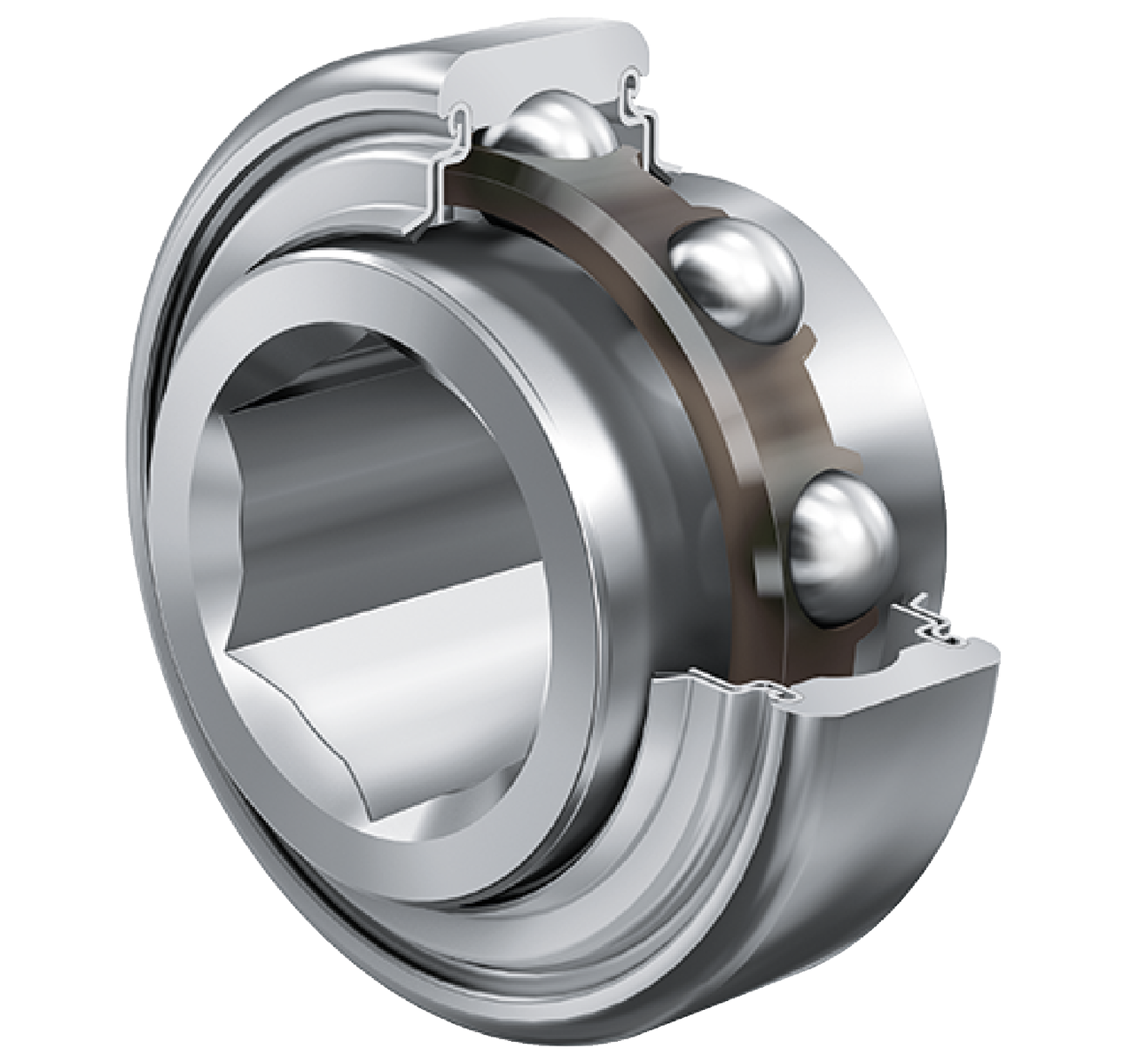

SK014-205-KRR INA | EAN: 4054366694614 | (GTIN14: 04054366694614)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.
SK014-205-KRR | 0504194470000 | All known EAN:
Click here for factory productpage:SK014-205-KRR (Medias Schaeffler)
| Gewicht | 0,175 kg |
|---|---|
| Structure group name | Deep groove ball bearings |
| Brand | INA |
| EAN code | 4054366694614 |
| UNSPSC codeUNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. | 31-17-15-02 |
| eClass codeA eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. | 23-05-08-01 |
| eClass name | Deep groove ball bearing |
| Bore diameterInner diameter of the bearing | 22.23 mm |
| Outside diameter | 52 mm |
| Width | 25.4 mm |
| Sealing type | Contact seal |
| Sealing | Seal on both sides |
| Seal Suffix | 2RS1 (NBR) |
| Seal Suffix short | -KRR |
| Basic dynamic load ratingThe basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings | 14.9 kN |
| Basic static load ratingThe basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. | 7.8 kN |
| Bore type | Hexagonal |
Deze tabel bevat technische gegevens voor dit Schaeffler product, verdeeld in secties zoals inbouwmaten, berekeningsgegevens, tekeningmaatgegevens en bijvoorbeeld materialen en montage-informatie.
 |
||
| Je huidige product variant: SK014-205-KRR | ||
|---|---|---|
| Beschrijving | Parameter | Waarde |
| Afdichting | KRR | Lipafdichtingen aan beide zijden |
| Afwijkende kogelset | 205 | 205 |
  |
||
| Belangrijkste afmetingen en prestatiegegevens | ||
| Parameter | Waarde | Beschrijving |
| D | 52mm | Buitendiameter |
| B | 25.4mm | Breedte |
| Cr | 14.9 kN | Dynamische basisbelasting, radiaal |
| C0r | 7.8 kN | Statische basisbelasting, radiaal |
| ≈m | 175g | Gewicht |
| Dimensions | ||
| Parameter | Waarde | Beschrijving |
| D1 | 42.5mm | Buitendiameter afdichting |
| C | 15mm | Breedte buitenring |
| F | 26.5mm | Maximale binnenafstand zeskantboring |
| r | 0.12mm | Radius zeskantboring |
| C2 | 16.5mm | Totale breedte afdichting |
| d1 | 33.8mm | Ribdiameter binnenring |
| d | 22.225mm | Zeskantbreedte |
| d | 22.225mm | Zeskantbreedte (inch) |
| 0.15mm | Boven tolerantie zeskantbreedte | |
| 0.05mm | Onder tolerantie zeskantbreedte | |
| Calculation factors | ||
| Parameter | Waarde | Beschrijving |
| f0 | 13.8 | Berekeningsfactor |
This table contains technical specifications for this product, organized into sections such as installation dimensions, calculation data, drawing dimensions, and information on materials and installation.
|
|
||
| Your current product variant | ||
|---|---|---|
| Parameter | Value | Description |
| Sealing | KRR | Lip seals on both sides |
| Deviating ballset | 205 | 205 |
|
|
||
| Main Dimensions & Performance Data | ||
| Parameter | Value | Description |
| D | 52mm | Outside diameter |
| B | 25.4mm | Width |
| Cr | 14,900N | Basic dynamic load rating, radial |
| C0r | 7,800N | Basic static load rating, radial |
| ≈m | 175g | Weight |

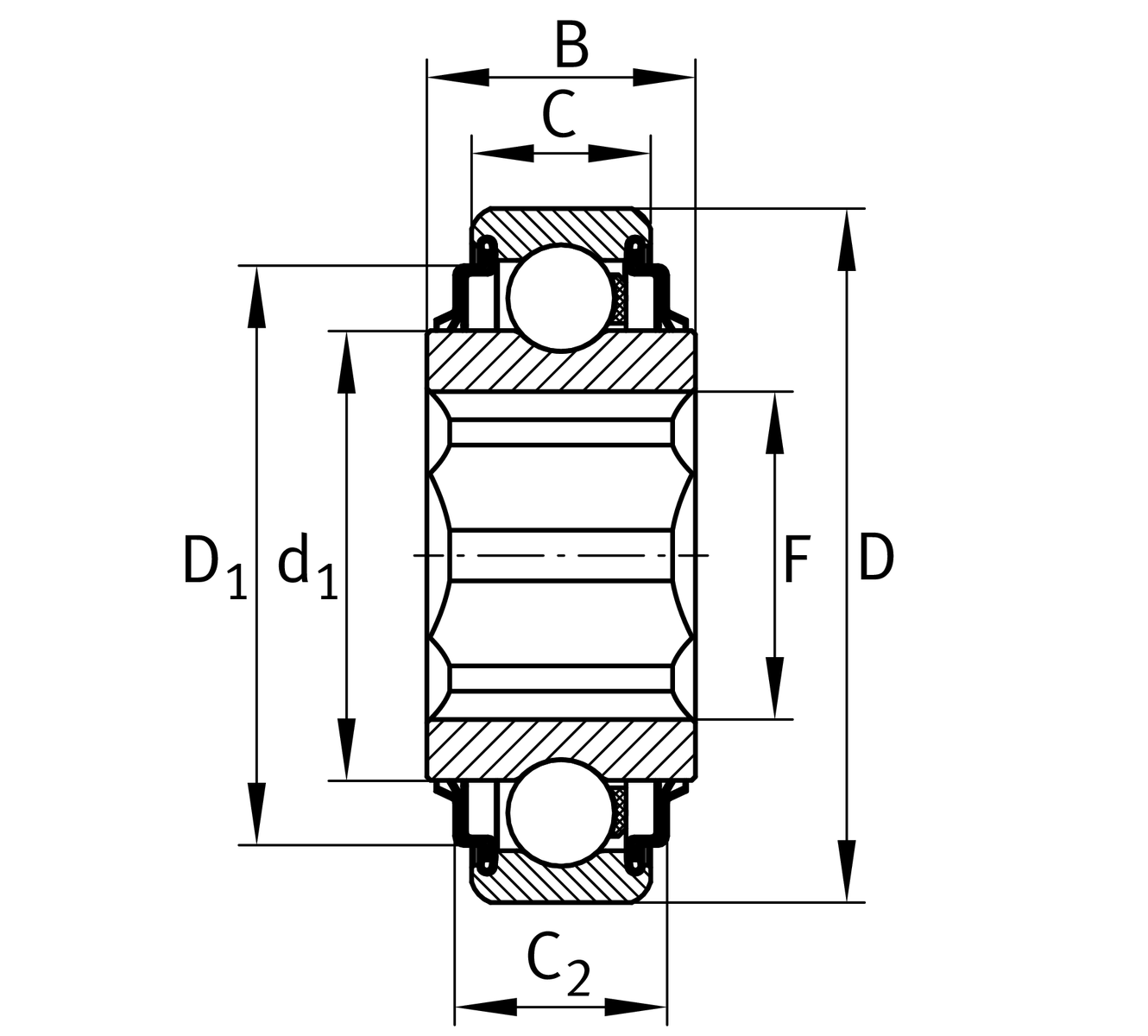

| Dimensions | ||
| Parameter | Value | Description |
| D1 | 42.5mm | Outside diameter seal |
| C | 15mm | Width, outer ring |
| F | 26.5mm | Maximum distance hexagonal bore |
| r | 0.12mm | Radius hexagonal bore |
| C2 | 16.5mm | Sealing total width |
| d1 | 33.8mm | Rib diameter inner ring |
| d | 22.225mm | Width of flats |
| d | 22.225mm | Width across flats (Inch) |
| 0.15mm | Width across flats upper tolerance | |
| 0.05mm | Width across flats lower tolerance | |
| Calculation factors | ||
| Parameter | Value | Description |
| f0 | 13.8 | Calculation factor |
