Oorspronkelijke prijs was: € 148,77.€ 47,61Huidige prijs is: € 47,61. incl.: € 57,61
11206TN9 SKF | EAN: 7316571228235 | (GTIN14: 07316571228235)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

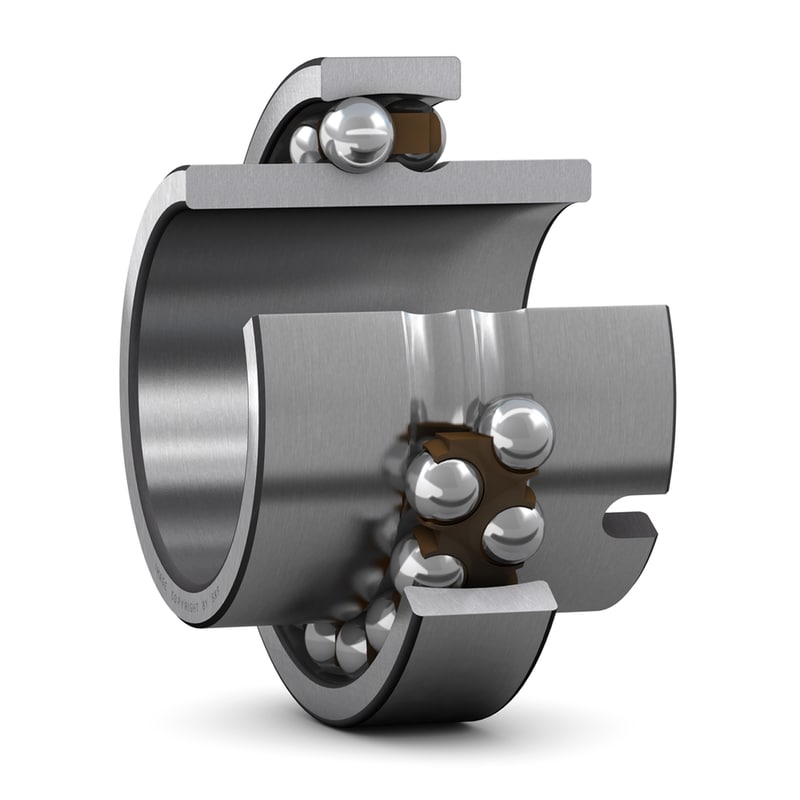

Self-aligning ball bearings, with extended inner ring, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The extended inner ring enables use of commercial grade shafting and axially location on the shaft by means of a slot at one end of the inner ring.
| Gewicht | 0,36 kg |
|---|---|
| Afmetingen | 6,7 × 6,5 × 5,4 cm |
| Structure group name | Self-aligning ball bearings |
| Short description | Self-aligning ball bearing with extended inner ring |
| Brand | SKF |
| Pack Code | Single package |
| EAN code | 7316571228235 |
| Pack gross weight | 0.36 kg |
| Pack height | 67 mm |
| Pack length | 65 mm |
| Pack width | 54 mm |
| Pack volume | 235.17 cm3 |
| Product net weight | 0.35 kg |
| Products per pack | 1 |
| UNSPSC codeUNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. | 31-17-15-32 |
| UNSPSC name | Self aligning bearing |
| eClass codeA eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. | 23-05-08-06 |
| eClass name | Self-aligning ball bearing |
| Bore diameterInner diameter of the bearing | 30 mm |
| Outside diameter | 62 mm |
| Width | 48 mm |
| Radial internal clearanceBearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) | CNNormal internal clearance (C Normal) |
| Sealing | Without |
| Bore type | Cylindrical |
| CageSteel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass | Non-metallic |
| Relubrication feature | Without |
| Tolerance class | Normal |
| Retaining feature,inner ring | Locating slot |
| Coating | Without |
| Material bearing | Bearing steel |
Deze tabel bevat de belangrijkste productspecificaties voor SKF-11206TN9, waaronder afmetingen, prestaties, eigenschappen en logistieke gegevens.
| Afmetingen | |
|---|---|
| Eigenschap | Waarde |
| Boring | 30 mm |
| Buitendiameter | 62 mm |
| Breedte | 48 mm |
| Prestaties | |
| Eigenschap | Waarde |
| Dynamisch draaggetal | 15.6 kN |
| Statisch draaggetal | 4.65 kN |
| Referentietoerental | 17 000 r/min |
| Grenstoerental | 6 700 r/min |
| Eigenschappen | |
| Eigenschap | Waarde |
| Borging kenmerk, binnenring | Borggroef |
| Positiekenmerk, lagerbuitenring | Geen |
| Aantal rijen | 2 |
| Type boring | Cilindrisch |
| Kooi | Niet-metaal |
| Radiale speling | CN |
| Tolerantieklasse | Normaal |
| Materiaal, lager | Lagerstaal |
| Coating | Zonder |
| Afdichtingen | Zonder |
| Smeermiddel | Geen |
| Nasmeer kenmerk | Zonder |
| Logistiek | |
| Eigenschap | Waarde |
| Nettogewicht van het product | 0.35 kg |
| eClass code | 23-05-08-06 |
| UNSPSC-code | 31171532 |
Deze tabel bevat technische gegevens voor dit product, verdeeld in secties zoals inbouwmaten, berekeningsgegevens, tekeningmaatgegevens en bijvoorbeeld materialen en montage-informatie.
| Beschrijving | Waarde | |
|---|---|---|
| Type boring | Cilindrisch | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| d | 30 mm | Boring |
| D | 62 mm | Buitendiameter |
| B | 48 mm | Breedte |
| C | 16 mm | Breedte buitenring |
| d1 | ≈ 40.1 mm | Diameter asborst binnenring |
| D1 | ≈ 51.9 mm | Diameter schouder buitenring |
| r1,2 | min. 1 mm | Afmeting afschuining |
|
|
||
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| Da | max. 56.4 mm | Diameter huisschouder |
| ra | max. 1 mm | Afrondingsstraal |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 15.6 kN | Dynamisch draaggetal |
| C0 | 4.65 kN | Statisch draaggetal |
| Pu | 0.24 kN | Vermoeiingsbelastinggrens |
| 6 700 r/min | Grenstoerental | |
| α | 2.5 ° | Toelaatbare scheefstelling |
| kr | 0.04 | Berekeningsfactor |
| e | 0.25 | Grenswaarde |
| Y0 | 2.5 | Berekeningsfactor |
| Y1 | 2.5 | Berekeningsfactor |
| Y2 | 3.9 | Berekeningsfactor |
