Oorspronkelijke prijs was: € 55,45.€ 17,74Huidige prijs is: € 17,74. incl.: € 21,47
1726305-2RS1 SKF | EAN: 7316570380316 | (GTIN14: 07316570380316)
52 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

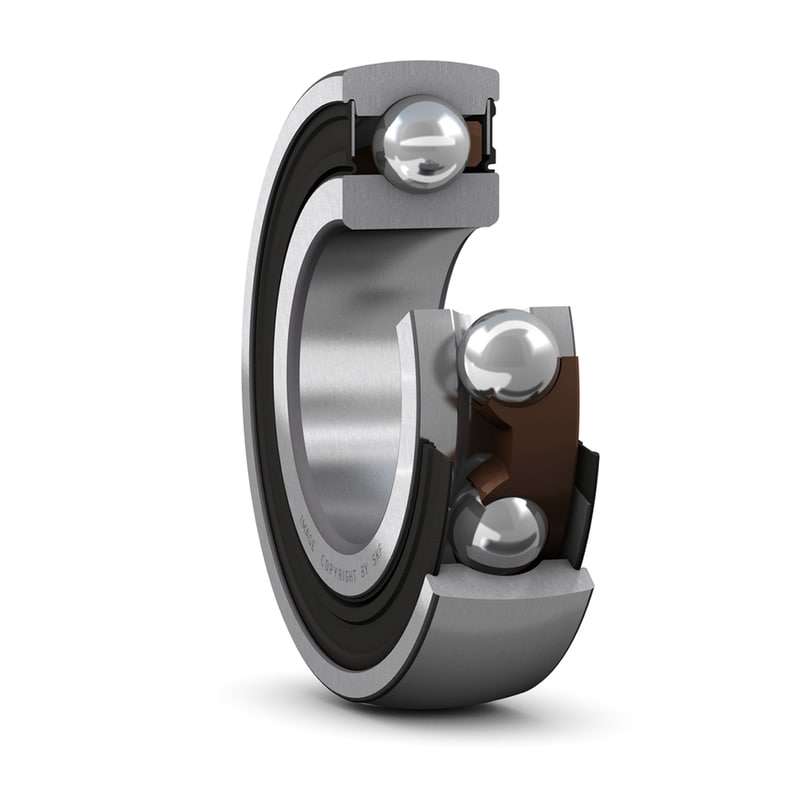

Insert bearings are based on sealed deep groove ball bearings. These insert bearings are suitable for applications where smooth running is a key operational parameter. It can accommodate heavier axial loads than any other insert bearing. The bearings are seald on both sides, made of sheet steel reinforced NBR, and are fitted in a recess on the outer ring and ride against the inner ring shoulder to act as contact seals.
| Gewicht | 0,22 kg |
|---|---|
| Afmetingen | 6,7 × 6,5 × 2,2 cm |
| Structure group name |
Insert bearings |
| Short description |
Insert bearing ,sealed 2RS1 ,with standard IR |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316570380316 |
| Pack gross weight |
0.22 kg |
| Pack height |
67 mm |
| Pack length |
65 mm |
| Pack width |
22 mm |
| Pack volume |
95.81 cm3 |
| Product net weight |
0.215 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-36 |
| UNSPSC name |
Insert bearing |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-08-02 |
| eClass name |
Bearing with spherical outside surface |
| Bore diameter Inner diameter of the bearing |
25 mm |
| Outside diameter |
62 mm |
| Width |
17 mm |
| Sealing type |
Contact |
| Sealing |
Seal on both sides |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
22.5 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
11.6 kN |
| Limiting speed |
7500 r/min |
| Bore type |
Cylindrical |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Non-metallic |
| Lubricant |
Grease |
| Relubrication feature |
Without |
| Width, inner ring |
17 mm |
| Width, outer ring |
17 mm |
| Width, total |
17 mm |
| Outer ring type |
Spherical |
| Retaining feature,inner ring |
Interference fit |
| Rolling elements |
Balls |
| Rubber seating ring |
Without |
| Coating |
Without |
| Material bearing |
Bearing steel |
| Application |
For agricultural applications |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Asdiameter | 25 mm | |
| Boring | 25 mm | |
| Buitendiameter | 62 mm | |
| Breedte, totaal | 17 mm | |
| Breedte binnenring | 17 mm | |
| Breedte buitenring | 17 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 22.5 kN | |
| Statisch draaggetal | 11.6 kN | |
| Grenstoerental | 7 500 r/min | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Borging kenmerk, binnenring | Vaste passing | |
| Type boring | Cilindrisch | |
| Rollichamen | Kogels | |
| Type buitenring | Sferisch | |
| Verlenging binnenring | Geen (standaardring) | |
| Kooi | Niet-metaal | |
| Rubber zittingring | Zonder | |
| Materiaal, lager | Lagerstaal | |
| Coating | Zonder | |
| Afdichtingen | Afdichting aan beide zijden | |
| Type afdichting | Contact, RS1 | |
| Smeermiddel | Vet | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.215 kg | |
| eClass code | 23-05-08-02 | |
| UNSPSC-code | 31171536 | |
|
Technische tekening SKF-1726305-2RS1 |
||
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
|---|---|---|
| d | 25 mm | Boring |
| D | 62 mm | Buitendiameter |
| B | 17 mm | Breedte binnenring |
| d1 | ≈ 36.6 mm | Buitendiameter binnenring |
| r1,2 | min. 1.1 mm | Afmeting afschuining van de binnenring |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 22.5 kN | Dynamisch draaggetal |
| C0 | 11.6 kN | Statisch draaggetal |
| Pu | 0.49 kN | Vermoeiingsbelastinggrens |
| 7 500 r/min | Grenstoerental | |
| f0 | 12 | Berekeningsfactor |
