315018C SKF | EAN: 7316577035400 | (GTIN14: 07316577035400)
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

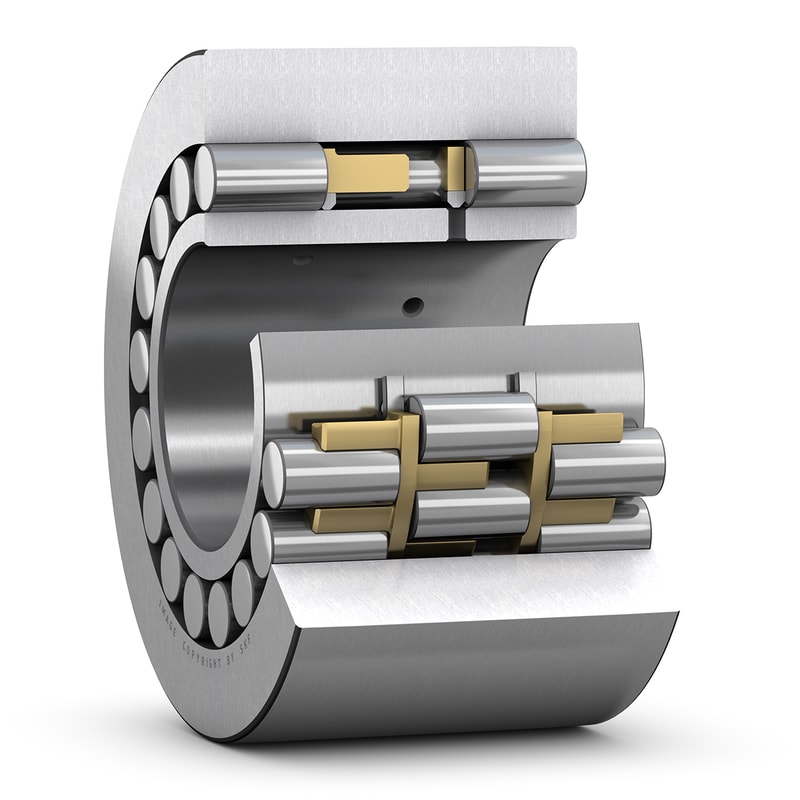

Three-row cylindrical roller bearings are designed to accommodate very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, for example backing bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| Gewicht | 29,033 kg |
|---|---|
| Afmetingen | 12,6 × 25,5 × 25 cm |
| Structure group name |
Cylindrical roller bearings |
| Short description |
Three-row cylindrical roller bearing |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316577035400 |
| Pack gross weight |
29.033 kg |
| Pack height |
126 mm |
| Pack length |
255 mm |
| Pack width |
250 mm |
| Pack volume |
8.033 dm3 |
| Product net weight |
28.75 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-05 |
| UNSPSC name |
Roller bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-09-01 |
| eClass name |
Cylindrical roller bearing |
| Bore diameter Inner diameter of the bearing |
100 mm |
| Outside diameter |
225 mm |
| Width |
120 mm |
| Radial internal clearance Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) |
NSTD |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
660 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
1120 kN |
| Bore type |
Cylindrical |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Machined metal (BRASS) |
| Number of rows |
3 |
| Relubrication feature |
Without |
| Tolerance class |
P4 |
| Width, inner ring |
120 mm |
| Width, outer ring |
120 mm |
| Bearing part |
Complete bearing |
| Functional outside diameter |
225 mm |
| Coating |
Without |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 100 mm | |
| Functionele buitendiameter | 225.008 mm | |
| Breedte binnenring | 120 mm | |
| Breedte buitenring | 120 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 660 kN | |
| Statisch draaggetal | 1 120 kN | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Lageronderdeel | Compleet lager | |
| Aantal rijen | 3 | |
| Type boring | Cilindrisch | |
| Kooi | Machinaal bewerkt metaal | |
| Ontwerp | Zonder axiale geleiding | |
| Radiale speling | NSTD | |
| Tolerantieklasse | NSTD | |
| Coating | Zonder | |
| Afdichtingen | Zonder | |
| Nasmeer kenmerk | Met | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 28.8 kg | |
| UNSPSC-code | 31171505 | |
|
Technische tekening SKF-315018-C |
||
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
|---|---|---|
| D | 225.008 mm | Buitendiameter |
| d | 100 mm | Boring |
| H | max. 62.479 mm | Hoogte doorsnede |
| B | 120 mm | Totale lagerbreedte over de binnenring(en) |
| C | 120 mm | Totale lagerbreedte over de buitenring(en) |
| F | 120.297 mm | Diameter loopbaan binnenring |
| E | 156.35 mm | Diameter loopbaan buitenring |
| r | min. 1.1 mm | Afmeting afschuining buitenring |
| SMEERGAT(EN) | ||
| Parameter | Waarde | Beschrijving |
| K | 5 mm | Diameter smeergat |
| 12 | Aantal gaten | |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 660 kN | Dynamisch draaggetal |
| C0 | 1 120 kN | Statisch draaggetal |
| Pu | 137 kN | Vermoeiingsbelastinggrens |
| Fr | max. 560 kN | Maximale dynamische radiale belastingen |
| F0r | max. 800 kN | Maximale statische radiale belastingen |
