Oorspronkelijke prijs was: € 324,71.€ 146,12Huidige prijs is: € 146,12. incl.: € 176,81
52212 SKF | EAN: 7316577007131 | (GTIN14: 07316577007131)
6 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

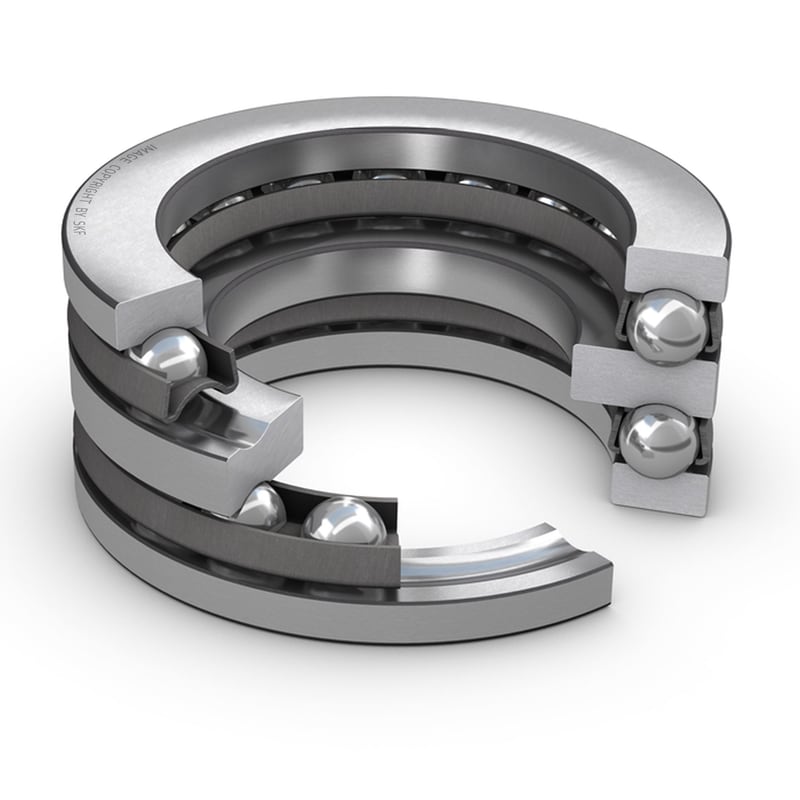

Double direction thrust ball bearings can accommodate axial loads in both directions. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| Gewicht | 1,195 kg |
|---|---|
| Afmetingen | 5,1 × 11,2 × 11,2 cm |
| Structure group name |
Thrust ball bearings |
| Short description |
Double direction thrust ball bearing |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316577007131 |
| Pack gross weight |
1.195 kg |
| Pack height |
51 mm |
| Pack length |
112 mm |
| Pack width |
112 mm |
| Pack volume |
639.744 cm3 |
| Product net weight |
1.161 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-07 |
| UNSPSC name |
Thrust bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-10-01 |
| eClass name |
Thrust ball bearing |
| Bore diameter Inner diameter of the bearing |
50 mm |
| Outside diameter |
95 mm |
| Width |
46 mm |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
59.2 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
140 kN |
| Limiting speed |
2800 r/min |
| Reference speed |
2000 r/min |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Sheet metal |
| Number of rows |
2 |
| Tolerance class |
Normal |
| Height |
46 mm |
| Axial load capability |
Double-direction |
| Housing washer type |
Flat back face |
| Coating |
Without |
| Material bearing |
Bearing steel |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 50 mm | |
| Buitendiameter | 95 mm | |
| Hoogte | 46 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 59.2 kN | |
| Statisch draaggetal | 140 kN | |
| Referentietoerental | 2 000 r/min | |
| Grenstoerental | 2 800 r/min | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Axiale belasting | Dubbelzijdig werkend | |
| Aantal rijen | 2 | |
| Kooi | Plaatmetaal | |
| Huisringen, type | Vlak | |
| Tolerantieklasse | Normaal | |
| Materiaal, lager | Lagerstaal | |
| Coating | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 1.16 kg | |
| eClass code | 23-05-10-01 | |
| UNSPSC-code | 31171507 | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
|---|---|---|
| d | 50 mm | Boring |
| D | 95 mm | Buitendiameter |
| H | 46 mm | Hoogte |
| D1 | ≈ 62 mm | Binnendiameter huisring |
| B | 10 mm | Hoogte asring |
| r1,2 | min. 1 mm | Afmeting afschuining huisring |
| r3,4 | min. 0.6 mm | Afmeting afschuining zittingring |
|
Afmetingen SKF-52212 |
Inbouwmaten SKF-52212 |
|
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| da | 60 mm | Diameter asborst |
| Da | max. 74 mm | Diameter huisschouder |
| ra | max. 1 mm | Afrondingsstraal lagerhuis |
| rb | max. 0.6 mm | Afrondingsstraal as |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 59.2 kN | Dynamisch draaggetal |
| C0 | 140 kN | Statisch draaggetal |
| Pu | 5.1 kN | Vermoeiingsbelastinggrens |
| 2 000 r/min | Referentietoerental | |
| 2 800 r/min | Grenstoerental | |
| A | 0.12 | Minimale belastingfactor |
