Oorspronkelijke prijs was: € 36,99.€ 16,65Huidige prijs is: € 16,65. incl.: € 20,15
6007N SKF | EAN: 7316570334142 | (GTIN14: 07316570334142)
8 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

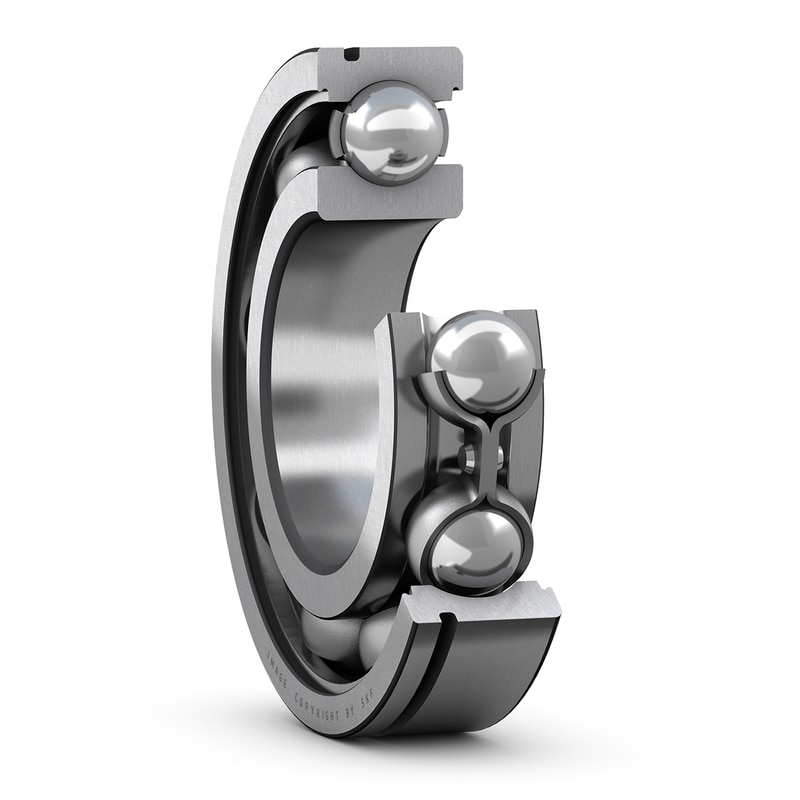

Single row deep groove ball bearings with a snap ring groove are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. An annular groove in the outer ring enables the bearings to retain a snap ring.
| Gewicht | 0,1506 kg |
|---|---|
| Afmetingen | 6,7 × 6,5 × 2,2 cm |
| Structure group name |
Deep groove ball bearings |
| Short description |
Deep groove ball bearing with snap ring groove |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316570334142 |
| Pack gross weight |
150.6 g |
| Pack height |
67 mm |
| Pack length |
65 mm |
| Pack width |
22 mm |
| Pack volume |
95.81 cm3 |
| Product net weight |
0.146 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-04 |
| UNSPSC name |
Ball bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-08-01 |
| eClass name |
Deep groove ball bearing |
| Bore diameter Inner diameter of the bearing |
35 mm |
| Outside diameter |
62 mm |
| Width |
14 mm |
| Radial internal clearance Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) |
CN Normal internal clearance (C Normal) |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
16.8 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
10.2 kN |
| Limiting speed |
15000 r/min |
| Reference speed |
24000 r/min |
| Bore type |
Cylindrical |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Sheet metal |
| Locating feature outer ring |
Snap ring groove |
| Number of rows |
1 |
| Relubrication feature |
Without |
| Tolerance class |
Class P6 (P6) |
| Matched arrangement Angular contact ball bearing can be arrangement in different sets. ----- Back-to-back (O) or Face-to-Face (X) or Tandem (>>) ----- The O- and X-arrangements of two precision angular contact ball bearings makes it possible to take up axial loads in both directions. High axial loads in only one direction are supported by a tandem arrangement. |
No |
| Filling slots |
Without |
| Coating |
Without |
| Material bearing |
Bearing steel |
| SKF performance class |
SKF Explorer |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 35 mm | |
| Buitendiameter | 62 mm | |
| Breedte | 14 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 16.8 kN | |
| Statisch draaggetal | 10.2 kN | |
| Referentietoerental | 24 000 r/min | |
| Grenstoerental | 15 000 r/min | |
| SKF prestatieklasse | SKF Explorer | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Vulopeningen | Zonder | |
| Aantal rijen | 1 | |
| Positiekenmerk, lagerbuitenring | Borgringgroef | |
| Type boring | Cilindrisch | |
| Kooi | Plaatmetaal | |
| Gepaarde opstelling | Nee | |
| Radiale speling | CN | |
| Materiaal, lager | Lagerstaal | |
| Coating | Zonder | |
| Afdichtingen | Zonder | |
| Smeermiddel | Geen | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.146 kg | |
| eClass code | 23-05-08-01 | |
| UNSPSC-code | 31171504 | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
|---|---|---|
| d | 35 mm | Boring |
| tΔdmp | -0.01 – 0 mm | Deviation limits of mid-range bore diameter |
| D | 62 mm | Buitendiameter |
| tΔDmp | -0.011 – 0 mm | Deviation limits of mid-range outside diameter |
| B | 14 mm | Breedte |
| tΔBs | -0.06 – 0 mm | Deviation limits of ring width |
| d1 | ≈ 43.75 mm | Diameter schouder |
| D2 | ≈ 55.61 mm | Uitsparingsdiameter |
| D3 | 59.61 mm | Diameter borgringgroef |
| b | 1.9 mm | Breedte borgringgroef |
| C | 2.06 mm | Afstand van zijvlak buitenring tot borgringgroef |
| r0 | max. 0.6 mm | Onderste radius van borgringgroef |
| r1,2 | min. 1 mm | Afmeting afschuining |
| P6 and tighter width tolerance | ISO tolerance class for dimensions | |
|
Afmetingen SKF-6007-N |
Inbouwmaten SKF-6007-N |
|
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| da | min. 39.6 mm | Diameter aanlegvlak as |
| Da | max. 57.4 mm | Diameter aanlegvlak lagerhuis |
| Db | min. 69 mm | Diameter borgring-uitsparing in lagerhuis |
| ba | min. 2.2 mm | Breedte borgring-uitsparing in het huis |
| Ca | max. 3.76 mm | Afstand van zijvlak buitenring tot achtervlak borgring |
| ra | max. 1 mm | Afrondingsstraal as of lagerhuis |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| SKF Explorer | SKF prestatieklasse | |
| C | 16.8 kN | Dynamisch draaggetal |
| C0 | 10.2 kN | Statisch draaggetal |
| Pu | 0.44 kN | Vermoeiingsbelastinggrens |
| 24 000 r/min | Referentietoerental | |
| 15 000 r/min | Grenstoerental | |
| kr | 0.025 | Minimale belastingfactor |
| f0 | 15 | Berekeningsfactor |
| Tolerances of run-out | ||
| Parameter | Waarde | Beschrijving |
| tKia | 10 µm | Range of section height at inner ring of assembled bearing |
| tKea | 13 µm | Range of section height at outer ring of assembled bearing |
| P6 | ISO tolerance class for geometrical tolerances | |
