Oorspronkelijke prijs was: € 162,21.€ 72,99Huidige prijs is: € 72,99. incl.: € 88,32
6202-2Z/VA228 SKF | EAN: 7316571553351 | (GTIN14: 07316571553351)
80 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

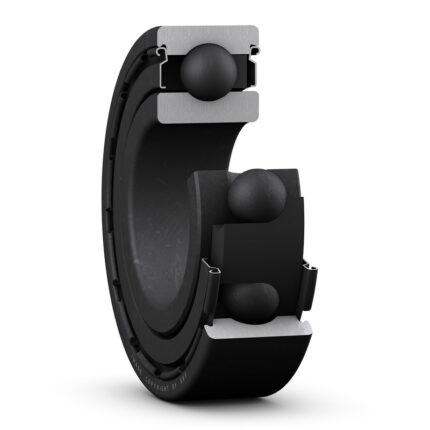

Single row deep groove ball bearings for high temperature applications, with shields on both sides, are designed for challenging operating conditions, with certain variants being capable of performing at temperatures as high as 350 °C (660 °F). They have larger radial internal clearances and use graphite-based lubricants that enable operation at high temperatures. They are lubricated for the life of the bearing and the entire surface of the bearings and shields are manganese phosphate treated, which enhances adhesion of the lubricant to the metal and improves their running-in properties. As with deep groove ball bearings generally, they are particularly versatile, accommodate radial and axial loads in both directions, and are easy to mount.
| Gewicht | 0,0499 kg |
|---|---|
| Afmetingen | 4,7 × 4,5 × 1,7 cm |
| Structure group name |
Deep groove ball bearings |
| Short description |
Deep groove ball bearing for high temperature applications with shields on both sides |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316571553351 |
| Pack gross weight |
49.9 g |
| Pack height |
47 mm |
| Pack length |
45 mm |
| Pack width |
17 mm |
| Pack volume |
35.955 cm3 |
| Product net weight |
46.5 g |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-04 |
| UNSPSC name |
Ball bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-90-90 |
| eClass name |
glide bearing ,rocker bearing (other ,Rolling bearing ,unspecified) |
| Bore diameter Inner diameter of the bearing |
15 mm |
| Outside diameter |
35 mm |
| Width |
11 mm |
| Radial internal clearance Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) |
Multiples of C5 |
| Sealing type |
Non-contact |
| Sealing |
Shield on both sides |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
8.06 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
3.75 kN |
| Limiting speed |
360 r/min |
| Bore type |
Cylindrical |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Non-metallic |
| Lubricant |
Solid lubricant |
| Number of rows |
1 |
| Relubrication feature |
Without |
| Tolerance class |
Normal |
| Matched arrangement Angular contact ball bearing can be arrangement in different sets. ----- Back-to-back (O) or Face-to-Face (X) or Tandem (>>) ----- The O- and X-arrangements of two precision angular contact ball bearings makes it possible to take up axial loads in both directions. High axial loads in only one direction are supported by a tandem arrangement. |
No |
| Filling slots |
Without |
| Coating |
Coated |
| Material bearing |
High temperature steel |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 15 mm | |
| Buitendiameter | 35 mm | |
| Breedte | 11 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Statisch draaggetal | 3.75 kN | |
| Grenstoerental | 360 r/min | |
| Maximale bedrijfstemperatuur | 350 °C | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Vulopeningen | Zonder | |
| Aantal rijen | 1 | |
| Positiekenmerk, lagerbuitenring | Geen | |
| Type boring | Cilindrisch | |
| Kooi | Niet-metaal | |
| Gepaarde opstelling | Nee | |
| Radiale speling | Multiples of C5 | |
| Materiaal, lager | Hoge temperatuur staal | |
| Coating | Gecoat | |
| Afdichtingen | Beschermplaatjes aan beide zijden | |
| Type afdichting | Niet-slepend | |
| Smeermiddel | Vast smeermiddel | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.0465 kg | |
| eClass code | 23-05-90-90 | |
| UNSPSC-code | 31171504 | |
| Beschrijving | Waarde | |
|---|---|---|
| Inlopen vereist | No | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| d | 15 mm | Boring |
| D | 35 mm | Buitendiameter |
| B | 11 mm | Breedte |
| d1 | ≈ 21.7 mm | Diameter asborst binnenring |
| D2 | ≈ 30.35 mm | Uitsparingsdiameter schouder van de buitenring |
| r1,2 | min. 0.6 mm | Afmeting afschuining |
|
Afmetingen SKF-6202-2Z/VA228 |
Inbouwmaten SKF-6202-2Z/VA228 |
|
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| da | min. 19.2 mm | Diameter asborst |
| da | max. 21.6 mm | Diameter asborst |
| Da | max. 30.8 mm | Diameter huisschouder |
| ra | max. 0.6 mm | Afrondingsstraal |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C0 | 3.75 kN | Statisch draaggetal |
| 360 r/min | Grenstoerental | |
| T | max. 350 °C | Bedrijfstemperatuur |
