Oorspronkelijke prijs was: € 232,03.€ 104,41Huidige prijs is: € 104,41. incl.: € 126,34
6310-2RS1NR SKF | EAN: 7316570480917 | (GTIN14: 07316570480917)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

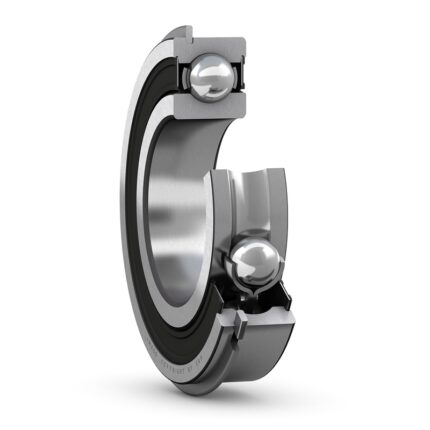

Single row deep groove ball bearing, with snap ring groove and seals or shields on one or both sides, are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The snap ring, fitted in an annular groove in the outer ring, facilitates axial location of the bearings within their housings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| Gewicht | 1,1388 kg |
|---|---|
| Afmetingen | 12,6 × 12,4 × 3,3 cm |
| Structure group name |
Deep groove ball bearings |
| Short description |
Deep groove ball bearing with snap ring and integral sealing |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316570480917 |
| Pack gross weight |
1138.8 g |
| Pack height |
126 mm |
| Pack length |
124 mm |
| Pack width |
33 mm |
| Pack volume |
515.592 cm3 |
| Product net weight |
1114.3 g |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-04 |
| UNSPSC name |
Ball bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-08-01 |
| eClass name |
Deep groove ball bearing |
| Bore diameter Inner diameter of the bearing |
50 mm |
| Outside diameter |
110 mm |
| Width |
27 mm |
| Radial internal clearance Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) |
CN Normal internal clearance (C Normal) |
| Sealing type |
Contact |
| Sealing |
Seal on both sides |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
61.8 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
38 kN |
| Limiting speed |
4300 r/min |
| Bore type |
Cylindrical |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Sheet metal |
| Locating feature outer ring |
Snapring (fitted) |
| Lubricant |
Grease |
| Number of rows |
1 |
| Relubrication feature |
Without |
| Tolerance class |
Class P6 (P6) |
| Matched arrangement Angular contact ball bearing can be arrangement in different sets. ----- Back-to-back (O) or Face-to-Face (X) or Tandem (>>) ----- The O- and X-arrangements of two precision angular contact ball bearings makes it possible to take up axial loads in both directions. High axial loads in only one direction are supported by a tandem arrangement. |
No |
| Filling slots |
Without |
| Coating |
Without |
| Material bearing |
Bearing steel |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 50 mm | |
| Buitendiameter | 110 mm | |
| Breedte | 27 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 61.8 kN | |
| Statisch draaggetal | 38 kN | |
| Grenstoerental | 4 300 r/min | |
| SKF prestatieklasse | SKF Explorer | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Vulopeningen | Zonder | |
| Aantal rijen | 1 | |
| Positiekenmerk, lagerbuitenring | Borgring (gemonteerd) | |
| Type boring | Cilindrisch | |
| Kooi | Plaatmetaal | |
| Gepaarde opstelling | Nee | |
| Radiale speling | CN | |
| Materiaal, lager | Lagerstaal | |
| Coating | Zonder | |
| Afdichtingen | Afdichting aan beide zijden | |
| Type afdichting | Contact | |
| Smeermiddel | Vet | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 1.11 kg | |
| eClass code | 23-05-08-01 | |
| UNSPSC-code | 31171504 | |
