71916ACD/HCP4ADGA SKF | EAN: 7316571811772 | (GTIN14: 07316571811772)
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

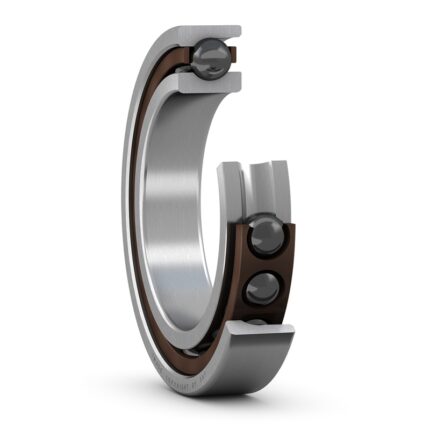

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.
| Gewicht | 0,714 kg |
|---|---|
| Afmetingen | 12,2 × 11,4 × 5,4 cm |
| Structure group name |
Super-precision angular contact ball bearings |
| Short description |
D design ,high-capacity ,Matched set of two super-precision ,single row angular contact ball bearings |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316571811772 |
| Pack gross weight |
0.714 kg |
| Pack height |
122 mm |
| Pack length |
114 mm |
| Pack width |
54 mm |
| Pack volume |
751.032 cm3 |
| Product net weight |
0.628 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-31 |
| UNSPSC name |
Angular contact bearing |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-08-03 |
| eClass name |
Angular contact ball bearing |
| Bore diameter Inner diameter of the bearing |
80 mm |
| Outside diameter |
110 mm |
| Width |
32 mm |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
55.9 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
55.9 kN |
| Tolerance class |
P4AU |
| Contact angle The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis |
25° |
| Matched arrangement Angular contact ball bearing can be arrangement in different sets. ----- Back-to-back (O) or Face-to-Face (X) or Tandem (>>) ----- The O- and X-arrangements of two precision angular contact ball bearings makes it possible to take up axial loads in both directions. High axial loads in only one direction are supported by a tandem arrangement. |
Universal matching |
| QTY in matched set The number of bearings in one matched set angular contact bearings. |
2 |
| Contact type |
Normal contact (two-point contact) |
| Matched(ax.clearance/preload |
Extra light preload |
| Coating |
Without |
| Material bearing |
Hybrid |
| SKF performance class |
SKF Standard |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 80 mm | |
| Buitendiameter | 110 mm | |
| Breedte | 32 mm | |
| Contacthoek | 25 ° | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 55.9 kN | |
| Statisch draaggetal | 73.5 kN | |
| Opmerking | Neem contact op met SKF voor de mogelijke toerentallen | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Contacttype | Normaal contact (tweepuntscontact) | |
| Aantal rijen | 2 | |
| Type ring | Binnen- en buitenringen uit één stuk | |
| Ontwerp | Hoge capaciteit D | |
| Universeel gepaard lager | Ja, O-opstelling (), X-opstelling (>>) | |
| Gepaarde opstelling | Universeel passend | |
| Aantal lagers in gepaarde set | 2 | |
| Gepaarde conditie (axiale speling/voorspanning) | Extra lichte voorspanning | |
| Tolerantieklasse | P4A | |
| Materiaal, lager | Hybride | |
| Coating | Zonder | |
| Afdichtingen | Zonder | |
| Smeermiddel | Geen | |
| Indicative product carbon footprint to manufacture | 2.26 kg CO2e | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.628 kg | |
| eClass code | 23-05-08-03 | |
| UNSPSC-code | 31171531 | |
Technische tekening -1 SKF-71916-ACD/HCP4ADGA Afmetingen
Technische tekening -2 SKF-71916-ACD/HCP4ADGA Inbouwmaten
Technische tekening -3 SKF-71916-ACD/HCP4ADGA
| Beschrijving | Waarde | |
|---|---|---|
| Universeel gepaard(e) lager(s) | Ja, O-opstelling (), X-opstelling (>>) | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| d | 80 mm | Boring |
| D | 110 mm | Buitendiameter |
| B | 32 mm | Breedte |
| d1 | 89.2 mm | Diameter asborst binnenring (groot zijvlak) |
| d2 | 89.2 mm | Diameter asborst binnenring (klein zijvlak) |
| D1 | 100.8 mm | Diameter schouder buitenring (groot zijvlak) |
| r1,2 | min. 1 mm | Afmeting afschuining |
| r3,4 | min. 0.3 mm | Afmeting afschuining |
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| da | min. 84.6 mm | Diameter aanlegvlak as |
| db | min. 84.6 mm | Diameter aanlegvlak as |
| Da | max. 105 mm | Diameter aanlegvlak lagerhuis |
| Db | max. 108 mm | Diameter aanlegvlak lagerhuis |
| ra | max. 1 mm | Afrondingsstraal |
| rb | max. 0.3 mm | Afrondingsstraal |
| dn | 91.7 mm | Positie van oliespuitmond |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 55.9 kN | Dynamisch draaggetal |
| C0 | 73.5 kN | Statisch draaggetal |
| Pu | 2.28 kN | Vermoeiingsbelastinggrens |
| To be calculated: Single bearing (12000) x speed reduction factor (see table below) | Bereikbaar toerental voor vetsmering | |
| To be calculated: Single bearing (19000) x speed reduction factor (see table below) | Bereikbaar toerental voor olie-luchtsmering | |
| α | 25 ° | Contacthoek |
| Dw | 9.525 mm | Kogeldiameter |
| i | 2 | Aantal rijen |
| z | 27 | Aantal kogels (per lager) |
| Gref | 5.1 cm³ | Referentiehoeveelheid smeervet (per lager) |
| VOORSPANNING EN STIJFHEID (X- OF O-OPSTELLING) | ||
| Parameter | Waarde | Beschrijving |
| A | Voorspanningsklasse | |
| G | 220 N | Voorspanning |
| 226 N/µm | Axiale stijfheid | |
| CORRECTION FACTORS FOR PRELOAD CALCULATION | ||
| Parameter | Waarde | Beschrijving |
| f | 1.24 | Correctiefactor is afhankelijk van lagerserie en -afmeting |
| f1 | 0.98 | Correctiefactor afhankelijk van contacthoek |
| f2A | 1 | Correctiefactor, voorspanning klasse A |
| fHC | 1.04 | Correctiefactor voor hybride lagers |
| FACTORS FOR EQUIVALENT BEARING LOAD CALCULATION | ||
| Parameter | Waarde | Beschrijving |
| e | 0.68 | Berekeningsfactor |
| Y1 | 0 | Axiale belastingfactor (enkel, tandem) |
| Y2 | 0.87 | Axiale belastingfactor (enkel, tandem) |
| Y0 | 0.38 | Axiale belastingfactor (enkel, tandem) |
| X1 | 1 | Radiale belastingfactor (enkel, tandem) |
| X2 | 0.41 | Radiale belastingfactor (enkel, tandem) |
| X0 | 0.5 | Radiale belastingfactor (enkel, tandem) |
| Y1 | 0.92 | Axiale belastingfactor (X- of O-opstelling) |
| Y2 | 1.41 | Axiale belastingfactor (X- of O-opstelling) |
| Y0 | 0.76 | Axiale belastingfactor (X- of O-opstelling) |
| X1 | 1 | Radiale belastingfactor (X- of O-opstelling) |
| X2 | 0.67 | Radiale belastingfactor (X- of O-opstelling) |
| X0 | 1 | Radiale belastingfactor (X- of O-opstelling) |
Onze producten leveren wij zorgvuldig en robuust verpakt in de gehele Benelux.
Elke bestelling wordt met uiterste zorg verpakt om ervoor te zorgen dat jouw bestelling
snel, duurzaam en in perfecte staat arriveert.
Onze betrouwbare verzendpartners zorgen voor een snelle en probleemloze levering in de gehele Benelux. Mocht er toch iets niet geheel naar wens zijn verlopen, laat het ons zo spoedig mogelijk weten.
Ondanks onze grote zorg kan het helaas voorkomen dat je bestelling niet helemaal naar wens is. Geen zorgen, je kunt eenvoudig het retourformulier invullen om je bestelling terug te sturen. Dit geldt ook als je per ongeluk het verkeerde product hebt besteld – we helpen je graag met een snelle en soepele retourprocedure. Dit begint met het invullen van het retourformulier. Klik hier om te starten.
Onze retourvoorwaarden staan vermeld in onze Terms and Conditions.
Ook staan veel voorkomende vragen in de Frequently asked questions.
Unfortunately, despite our great care, it may happen that your order is not completely satisfactory. Don't worry, you can easily fill out the return form to return your order. This also applies if you have accidentally ordered the wrong product - we are happy to help you with a quick and smooth return process. This starts with filling out the return form. Click here to start.
Our return policy is listed in our Terms and Conditions.
Also are common quetions included in the Frequently asked questions.
In stock
Oorspronkelijke prijs was: € 339,69.€ 108,70Huidige prijs is: € 108,70. incl.: € 131,53In stock
Oorspronkelijke prijs was: € 350,86.€ 112,28Huidige prijs is: € 112,28. incl.: € 135,86In stock
Oorspronkelijke prijs was: € 382,13.€ 122,28Huidige prijs is: € 122,28. incl.: € 147,96
