Oorspronkelijke prijs was: € 217,68.€ 97,96Huidige prijs is: € 97,96. incl.: € 118,53

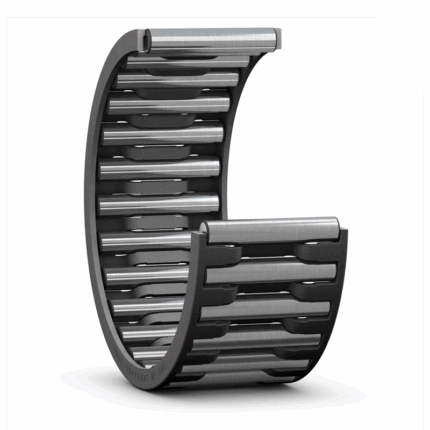

K100X108X27 SKF | EAN: 7316571219264 | (GTIN14: 07316571219264)
2 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.
Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.
| Gewicht | 0,214 kg |
|---|---|
| Afmetingen | 11,6 × 11,4 × 3,9 cm |
| Structure group name |
Needle roller bearings |
| Short description |
Single row needle roller and cage assembly |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316571219264 |
| Pack gross weight |
0.214 kg |
| Pack height |
116 mm |
| Pack length |
114 mm |
| Pack width |
39 mm |
| Pack volume |
515.736 cm3 |
| Product net weight |
0.176 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-12 |
| UNSPSC name |
Needle bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-09-03 |
| eClass name |
Needle roller bearing |
| Bore diameter Inner diameter of the bearing |
100 mm |
| Outside diameter |
108 mm |
| Width |
27 mm |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
55 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
143 kN |
| Limiting speed |
4800 r/min |
| Reference speed |
4000 r/min |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Sheet steel |
| Number of rows |
1 |
| Relubrication feature |
Without |
| Tolerance class |
Normal |
| Bearing part |
Needle roller and cage assembly |
| Bore diameter needle roller |
100 mm |
| Aligning feature |
Without |
| Outer diameter needle roller |
108 mm |
| Coating |
Without |
| Material bearing |
Bearing steel |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring van naaldrollenset | 100 mm | |
| Buitendiameter | 108 mm | |
| Buitendiameter van naaldrollenset | 108 mm | |
| Breedte | 27 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 55 kN | |
| Statisch draaggetal | 143 kN | |
| Referentietoerental | 4 000 r/min | |
| Grenstoerental | 4 800 r/min | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Lageronderdeel | Naaldkrans | |
| Aantal rijen | 1 | |
| Type buitenring | Niet van toepassing | |
| Uitlijnfunctie | Zonder | |
| Kooi | Plaatstaal | |
| Tolerantieklasse | Normaal | |
| Materiaal, lager | Lagerstaal | |
| Coating | Zonder | |
| Afdichtingen | Zonder | |
| Smeermiddel | Geen | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.176 kg | |
| eClass code | 23-05-09-03 | |
| UNSPSC-code | 31171512 | |
|
Technische tekening SKF-K100X108X27 |
||
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
|---|---|---|
| Fw | 100 mm | Diameter onder rollen |
| Ew | 108 mm | Buitendiameter rollenset |
| U | 27 mm | Breedte naaldkrans |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 55 kN | Dynamisch draaggetal |
| C0 | 143 kN | Statisch draaggetal |
| Pu | 17.6 kN | Vermoeiingsbelastinggrens |
| 4 000 r/min | Referentietoerental | |
| 4 800 r/min | Grenstoerental | |
