Oorspronkelijke prijs was: € 109,27.€ 34,97Huidige prijs is: € 34,97. incl.: € 42,31
NUP206ECP SKF | EAN: 7316577028402 | (GTIN14: 07316577028402)
216 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

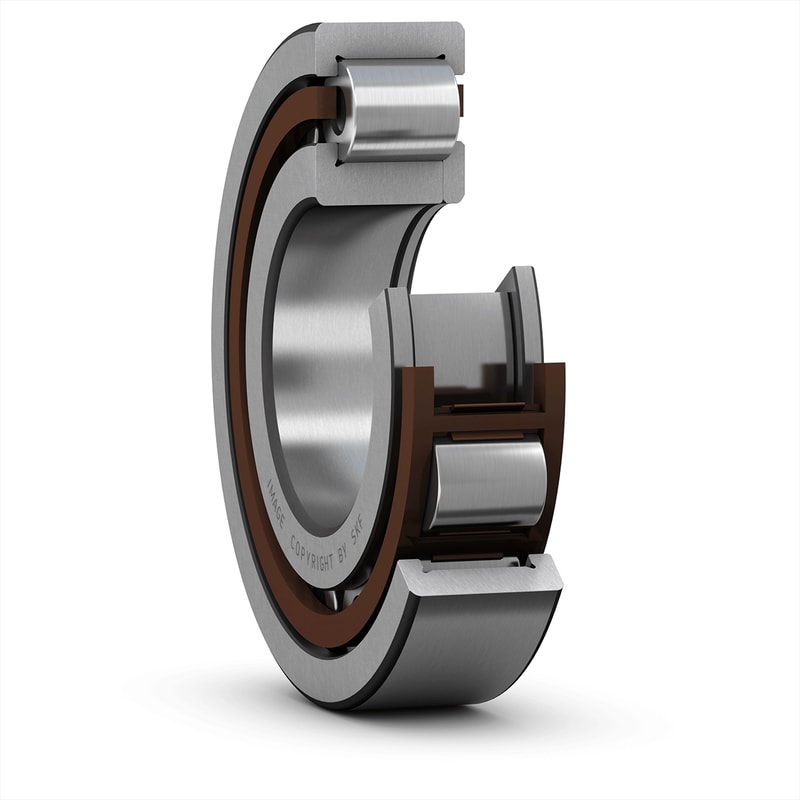

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| Gewicht | 0,2169 kg |
|---|---|
| Afmetingen | 7,8 × 7,6 × 2,3 cm |
| Structure group name |
Cylindrical roller bearings |
| Short description |
NUP design ,Single row cylindrical roller bearing |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316577028402 |
| Pack gross weight |
216.9 g |
| Pack height |
78 mm |
| Pack length |
76 mm |
| Pack width |
23 mm |
| Pack volume |
136.344 cm3 |
| Product net weight |
0.211 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-05 |
| UNSPSC name |
Roller bearings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-09-01 |
| eClass name |
Cylindrical roller bearing |
| Bore diameter Inner diameter of the bearing |
30 mm |
| Outside diameter |
62 mm |
| Width |
16 mm |
| Radial internal clearance Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) |
CN Normal internal clearance (C Normal) |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
44 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
36.5 kN |
| Limiting speed |
14000 r/min |
| Reference speed |
13000 r/min |
| Bore type |
Cylindrical |
| Cage Steel cages can be used at operating temperatures up to 300 °C (570 °F) Sheet steel cages Stamped sheet steel cages are made of low carbon steel / Machined steel cages: Machined steel cages are normally made of non-alloyed structural steel / Brass Cages, Brass cages can be used at operating temperatures up to 250 °C (480 °F). / Sheet brass cages: Stamped sheet brass cages are used for some small and medium-size bearings / Machined brass cages: Most brass cages are machined from cast or wrought brass |
Non-metallic |
| Number of rows |
1 |
| Relubrication feature |
Without |
| Tolerance class |
Normal |
| Bearing part |
Complete bearing |
| Loose flange |
Inner ring loose flange |
| QTY of flanges, inner ring |
1 |
| QTY of flanges, outer ring |
2 |
| Coating |
Without |
| SKF performance class |
SKF Explorer |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 30 mm | |
| Buitendiameter | 62 mm | |
| Breedte | 16 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 44 kN | |
| Statisch draaggetal | 36.5 kN | |
| Referentietoerental | 13 000 r/min | |
| Grenstoerental | 14 000 r/min | |
| SKF prestatieklasse | SKF Explorer | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Lageronderdeel | Compleet lager | |
| Axiale verplaatsing mogelijkheid | Geen | |
| Aantal rijen | 1 | |
| Positiekenmerk, lagerbuitenring | Geen | |
| Type boring | Cilindrisch | |
| Kooi | Niet-metaal | |
| Aantal flenzen, buitenring | 2 | |
| Aantal flenzen, binnenring | 1 | |
| Losse flens | Binnenste ring losse flens | |
| Radiale speling | CN | |
| Tolerantieklasse | Normaal | |
| Coating | Zonder | |
| Afdichtingen | Zonder | |
| Smeermiddel | Geen | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.211 kg | |
| eClass code | 23-05-09-01 | |
| UNSPSC-code | 31171505 | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
|---|---|---|
| d | 30 mm | Boring |
| D | 62 mm | Buitendiameter |
| B | 16 mm | Breedte |
| d1 | ≈ 41.2 mm | Diameter asborst binnenring |
| D1 | ≈ 52.08 mm | Diameter schouder buitenring |
| F | 37.5 mm | Diameter loopbaan binnenring |
| r1,2 | min. 1 mm | Afmeting afschuining |
| r3,4 | min. 0.6 mm | Afmeting afschuining losse flensring |
|
Afmetingen SKF-NUP206-ECP |
Inbouwmaten SKF-NUP206-ECP |
|
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| da | min. 35.3 mm | Diameter van afstandsbus |
| db | min. 43 mm | Diameter aanlegvlak as |
| Da | max. 55.9 mm | Diameter aanlegvlak lagerhuis |
| ra | max. 1 mm | Afrondingsstraal |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| SKF Explorer | SKF prestatieklasse | |
| C | 44 kN | Dynamisch draaggetal |
| C0 | 36.5 kN | Statisch draaggetal |
| Pu | 4.55 kN | Vermoeiingsbelastinggrens |
| 13 000 r/min | Referentietoerental | |
| 14 000 r/min | Grenstoerental | |
| kr | 0.15 | Minimale belastingfactor |
| e | 0.2 | Grenswaarde |
| Y | 0.6 | Berekeningsfactor |
