Oorspronkelijke prijs was: € 162,79.€ 73,26Huidige prijs is: € 73,26. incl.: € 88,64
PER.210HRRB52 SKF | EAN: 1200106156901 | (GTIN14: 01200106156901)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

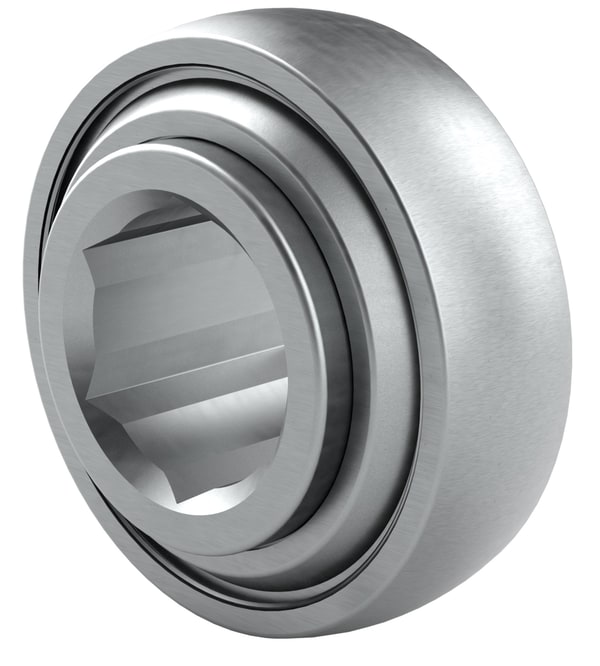

These special single row deep groove ball bearings are designed mainly for agricultural applications, such as combine harvesters, balers. The hexagonal bore enables ease of mounting on mating hexagonal shafts. The spherical outside surface accommodates static misalignment when mounted in standard/commercial housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
| Gewicht | 0,745 kg |
|---|---|
| Afmetingen | 5,4 × 10 × 10 cm |
| Structure group name |
Deep groove ball bearings |
| Short description |
Special ball bearing with hexagonal bore ,spherical outer surface and high contamination resistant seals |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
1200106156901 |
| Pack gross weight |
0.745 kg |
| Pack height |
54 mm |
| Pack length |
100 mm |
| Pack width |
100 mm |
| Pack volume |
540 cm3 |
| Product net weight |
0.736 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-36 |
| UNSPSC name |
Insert bearing |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-16-90 |
| eClass name |
Mounted bearing unit (unclassified) |
| Bore diameter Inner diameter of the bearing |
38.1 mm |
| Outside diameter |
91.5 mm |
| Width |
30 mm |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
40.3 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
25.3 kN |
| Bore type |
Hexagonal |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 38.1 mm | |
| Buitendiameter | 91.5 mm | |
| Breedte | 30 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 40.3 kN | |
| Statisch draaggetal | 25.3 kN | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Type boring | Zeshoekig | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.736 kg | |
