Oorspronkelijke prijs was: € 195,85.€ 88,13Huidige prijs is: € 88,13. incl.: € 106,64
PER.W211RPPB4 SKF | EAN: 1200106186267 | (GTIN14: 01200106186267)
Uitverkocht
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

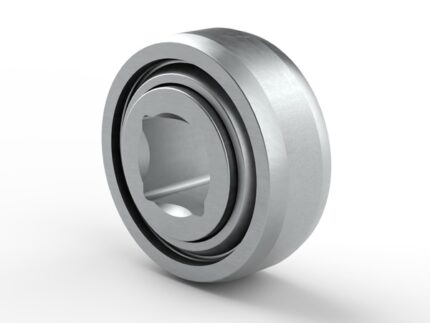

These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The spherical outside surface accommodates static misalignment when mounted in standard/commercial housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
| Gewicht | 1,177 kg |
|---|---|
| Afmetingen | 8 × 11 × 11 cm |
| Structure group name |
Deep groove ball bearings |
| Short description |
Special ball bearing with round bore and high contamination resistant 3-lip seals |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
1200106186267 |
| Pack gross weight |
1.177 kg |
| Pack height |
80 mm |
| Pack length |
110 mm |
| Pack width |
110 mm |
| Pack volume |
968 cm3 |
| Product net weight |
1.13 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-36 |
| UNSPSC name |
Insert bearing |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-16-90 |
| eClass name |
Mounted bearing unit (unclassified) |
| Bore diameter Inner diameter of the bearing |
55.575 mm |
| Outside diameter |
100 mm |
| Width |
55.562 mm |
| Sealing |
Without |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
43.4 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
29.2 kN |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 55.575 mm | |
| Buitendiameter | 100 mm | |
| Breedte | 55.562 mm | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 43.4 kN | |
| Statisch draaggetal | 29.2 kN | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 1.13 kg | |
