Oorspronkelijke prijs was: € 371,01.€ 166,95Huidige prijs is: € 166,95. incl.: € 202,01
QJ308N2MA/C2L SKF | EAN: 7316577013064 | (GTIN14: 07316577013064)
2 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

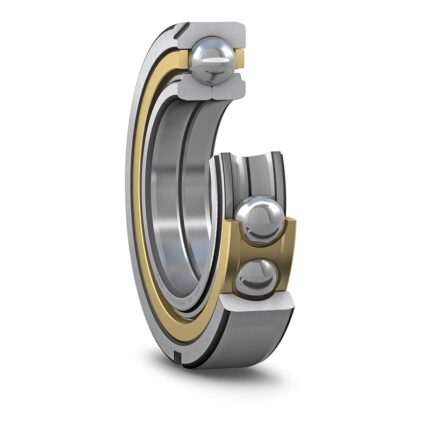

Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. Their single-row design requires considerably less axial space than double-row designs. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces.
| Gewicht | 0,7833 kg |
|---|---|
| Afmetingen | 9,6 × 9,4 × 2,7 cm |
| Structure group name |
Angular contact ball bearings |
| Short description |
Four-point contact ball bearing |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316577013064 |
| Pack gross weight |
783.3 g |
| Pack height |
96 mm |
| Pack length |
94 mm |
| Pack width |
27 mm |
| Pack volume |
243.648 cm3 |
| Product net weight |
0.771 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-38 |
| UNSPSC name |
Four point bearing |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-08-05 |
| eClass name |
Four-point contact ball bearing |
| Bore diameter Inner diameter of the bearing |
40 mm |
| Outside diameter |
90 mm |
| Width |
23 mm |
| Radial internal clearance Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance) or in the axial direction (axial internal clearance) |
C2 smaller than CN |
| Sealing |
Without |
| Afmetingen | ||
| Eigenschap naam | Waarde | |
|---|---|---|
| Boring | 40 mm | |
| Buitendiameter | 90 mm | |
| Breedte | 23 mm | |
| Contacthoek | 35 ° | |
| Prestaties | ||
| Eigenschap naam | Waarde | |
| Dynamisch draaggetal | 78 kN | |
| Statisch draaggetal | 64 kN | |
| Grenstoerental | 14 000 r/min | |
| SKF prestatieklasse | SKF Explorer | |
| Eigenschappen | ||
| Eigenschap naam | Waarde | |
| Contacttype | Vierpuntscontact | |
| Aantal rijen | 1 | |
| Positiekenmerk, lagerbuitenring | Borggroef | |
| Type ring | Ongedeelde binnenring en eendelige buitenring | |
| Kooi | Machinaal bewerkt metaal | |
| Gepaarde opstelling | Nee | |
| Universeel gepaard lager | Nee | |
| Axiale speling | C2L | |
| Materiaal, lager | Lagerstaal | |
| Coating | Zonder | |
| Afdichtingen | Zonder | |
| Smeermiddel | Geen | |
| Nasmeer kenmerk | Zonder | |
| Logistiek | ||
| Eigenschap naam | Waarde | |
| Nettogewicht van het product | 0.771 kg | |
| eClass code | 23-05-08-05 | |
| UNSPSC-code | 31171538 | |
