S71914ACDGA/HCP4A SKF | EAN: 7316572451052 | (GTIN14: 07316572451052)
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

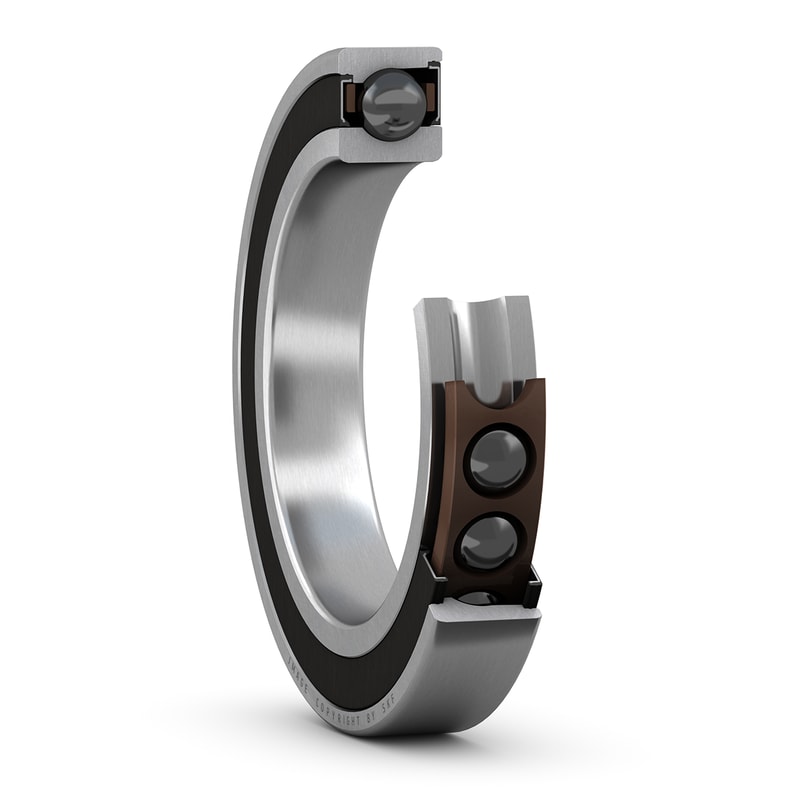

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
| Gewicht | 0,337 kg |
|---|---|
| Afmetingen | 10,5 × 10,3 × 2,5 cm |
| Structure group name |
Super-precision angular contact ball bearings |
| Short description |
high-speed ,E design ,Super-precision ,universally matchable single row angular contact ball bearings with non-contact seals on both sides |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316572451052 |
| Pack gross weight |
0.337 kg |
| Pack height |
105 mm |
| Pack length |
103 mm |
| Pack width |
25 mm |
| Pack volume |
270.375 cm3 |
| Product net weight |
0.283 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-31 |
| UNSPSC name |
Angular contact bearing |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-08-03 |
| eClass name |
Angular contact ball bearing |
| Bore diameter Inner diameter of the bearing |
70 mm |
| Outside diameter |
100 mm |
| Width |
16 mm |
| Sealing type |
Non-contact |
| Sealing |
Seal on both sides |
| Basic dynamic load rating The basic dynamic load rating Cr or Ca is the load which a bearing can theoretically endure for a basic rating life of one million revolutions. This is expressed as pure radial (Cr) load for radial bearings and pure axial (Ca) load for thrust bearings |
32.5 kN |
| Basic static load rating The basic static load rating C0r or C0a is defined as the load that results in a certain value of contact stress at the centre of contact of the most heavily loaded rolling element/raceway. C0r is indicate for radial load-, C0a is indicate for radial load rating. |
32.5 kN |
| Lubricant |
Grease |
| Tolerance class |
P4A |
| Contact angle The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis |
25° |
| Matched arrangement Angular contact ball bearing can be arrangement in different sets. ----- Back-to-back (O) or Face-to-Face (X) or Tandem (>>) ----- The O- and X-arrangements of two precision angular contact ball bearings makes it possible to take up axial loads in both directions. High axial loads in only one direction are supported by a tandem arrangement. |
No |
| Contact type |
Normal contact (two-point contact) |
| Matched(ax.clearance/preload |
class A ,Measuring load |
| Coating |
Without |
| Material bearing |
Hybrid |
| Afmetingen | ||
| Feature Name | Value | |
|---|---|---|
| Boring | 70 mm | |
| Buitendiameter | 100 mm | |
| Breedte | 16 mm | |
| Contacthoek | 25 ° | |
| Prestaties | ||
| Feature Name | Value | |
| Dynamisch draaggetal | 32.5 kN | |
| Statisch draaggetal | 32.5 kN | |
| Opmerking | Neem contact op met SKF voor de mogelijke toerentallen | |
| Eigenschappen | ||
| Feature Name | Value | |
| Contacttype | Normaal contact (tweepuntscontact) | |
| Aantal rijen | 1 | |
| Type ring | Binnen- en buitenringen uit één stuk | |
| Ontwerp | Hoge capaciteit D | |
| Universeel gepaard lager | Ja, O-opstelling (), X-opstelling (>>) | |
| Gepaarde opstelling | Nee | |
| Gepaarde conditie (axiale speling/voorspanning) | Belasting meten, klasse A | |
| Tolerantieklasse | P4A | |
| Materiaal, lager | Hybride | |
| Coating | Zonder | |
| Afdichtingen | Afdichting aan beide zijden | |
| Type afdichting | Niet-slepend | |
| Smeermiddel | Vet | |
| Indicative product carbon footprint to manufacture | 1.02 kg CO2e | |
| Logistiek | ||
| Feature Name | Value | |
| Nettogewicht van het product | 0.283 kg | |
| eClass code | 23-05-08-03 | |
| UNSPSC-code | 31171531 | |
| Beschrijving | Waarde | |
|---|---|---|
| Universeel gepaard(e) lager(s) | Ja, O-opstelling (), X-opstelling (>>) | |
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| d | 70 mm | Boring |
| D | 100 mm | Buitendiameter |
| B | 16 mm | Breedte |
| d1 | 79.2 mm | Diameter asborst binnenring (groot zijvlak) |
| d2 | 79.2 mm | Diameter asborst binnenring (klein zijvlak) |
| D2 | 93.72 mm | Uitsparingsdiameter buitenring (groot zijvlak) |
| r1,2 | min. 1 mm | Afmeting afschuining |
| r3,4 | min. 0.3 mm | Afmeting afschuining |
| a | 27.9 mm | Afstand van zijvlak tot drukpunt |
|
Afmetingen SKF-S71914-ACDGA/HCP4A |
Inbouwmaten SKF-S71914-ACDGA/HCP4A |
|
| Inbouwmaten | ||
| Parameter | Waarde | Beschrijving |
| da | min. 74.6 mm | Diameter aanlegvlak as |
| da | max. 78.6 mm | Diameter aanlegvlak as |
| db | min. 74.6 mm | Diameter aanlegvlak as |
| db | max. 78.6 mm | Diameter aanlegvlak as |
| Da | max. 95.4 mm | Diameter aanlegvlak lagerhuis |
| Db | max. 98 mm | Diameter aanlegvlak lagerhuis |
| ra | max. 1 mm | Afrondingsstraal |
| rb | max. 0.3 mm | Afrondingsstraal |
| Berekeningsgegevens | ||
| Parameter | Waarde | Beschrijving |
| C | 32.5 kN | Dynamisch draaggetal |
| C0 | 32.5 kN | Statisch draaggetal |
| Pu | 1 kN | Vermoeiingsbelastinggrens |
| Neem contact op met SKF voor de mogelijke toerentallen | Bereikbare toerentallen | |
| α | 25 ° | Contacthoek |
| Dw | 9.525 mm | Kogeldiameter |
| i | 1 | Aantal rijen |
| z | 24 | Aantal kogels (per lager) |
| VOORSPANNING EN STIJFHEID (X- OF O-OPSTELLING) | ||
| Parameter | Waarde | Beschrijving |
| A | Voorspanningsklasse | |
| G | 200 N | Voorspanning niet-gemonteerd |
| 200 N/µm | Axiale stijfheid | |
| CORRECTION FACTORS FOR PRELOAD CALCULATION | ||
| Parameter | Waarde | Beschrijving |
| f | 1.19 | Correctiefactor is afhankelijk van lagerserie en -afmeting |
| f1 | 0.98 | Correctiefactor afhankelijk van contacthoek |
| f2A | 1 | Correctiefactor, voorspanning klasse A |
| fHC | 1.04 | Correctiefactor voor hybride lagers |
| FACTORS FOR EQUIVALENT BEARING LOAD CALCULATION | ||
| Parameter | Waarde | Beschrijving |
| e | 0.68 | Grenswaarde |
| Y1 | 0 | Axiale belastingfactor (enkel, tandem) |
| Y2 | 0.87 | Axiale belastingfactor (enkel, tandem) |
| Y0 | 0.38 | Axiale belastingfactor (enkel, tandem) |
| X1 | 1 | Radiale belastingfactor (enkel, tandem) |
| X2 | 0.41 | Radiale belastingfactor (enkel, tandem) |
| X0 | 0.5 | Radiale belastingfactor (enkel, tandem) |
| Y1 | 0.92 | Axiale belastingfactor (X- of O-opstelling) |
| Y2 | 1.41 | Axiale belastingfactor (X- of O-opstelling) |
| Y0 | 0.76 | Axiale belastingfactor (X- of O-opstelling) |
| X1 | 1 | Radiale belastingfactor (X- of O-opstelling) |
| X2 | 0.67 | Radiale belastingfactor (X- of O-opstelling) |
| X0 | 1 | Radiale belastingfactor (X- of O-opstelling) |
