SKF SNL 205 Split plummer block housing SNL 2, 3, 5 and 6 series- J: 130 mm - Afbeelding 1

Click to enlarge

SKF SNL 205 Split plummer block housing SNL 2, 3, 5 and 6 series- J: 130 mm

SKF SNL 205 Split plummer block housing SNL 2, 3, 5 and 6 series- J: 130 mm

Name: SKF SNL 205 Split plummer block housing SNL 2, 3, 5 and 6 series- J: 130 mm
Brand: SKF
SKU: SKF-SNL205
Availability: InStock

Oorspronkelijke prijs was: € 304,39.Huidige prijs is: € 97,40. incl.: € 117,85

SNL205 SKF | EAN: 7316571185187 | (GTIN14: 07316571185187)

8 op voorraad

Betaal met 30 dagen!

Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.

Add to compare

Add to wishlist

FAG SES & SFK SNL Size guide

Plummer block housing

FAG SES & SFK SNL Housing dimensions

Split plummer block housing for various bearing designs. The SNV series is replaced by the new SES series. The SES serie is now compatible with SKF SNL. We have made a overview of the dimensions.

Housing FAG	Housing SKF	D	b	g	a	c	h	m	v	u	s	h_1	k	g_1	g_2	g_3	D_2	D_3
SES505-L	SNL 505	52	46	67	165	19	40	130	20	15	12	74	25	5	52	10	31,5	39,5
SES205-L	SNL 205	52	46	67	165	19	40	130	20	15	12	74	25	5	52	10	36,5	44,5
SES506-605-L	SNL 506-605	62	52	77	185	22	50	150	20	15	12	89	32	5	62	10	36,5	44,5
SES206-305-L	SNL 206-305	62	52	77	185	22	50	150	20	15	12	89	32	5	62	10	46,5	54,5
SES507-606-L	SNL 507-606	72	52	82	185	22	50	150	20	15	12	93	34	5	66	11	46,5	54,5
SES207-L	SNL 207	72	52	82	185	22	50	150	20	15	12	93	34	5	66	11	56,5	64,5
SES508-607-L	SNL 508-607	80	60	85	205	25	60	170	20	15	12	108	39	5	69	11	51,5	59,5
SES208-307-L	SNL 208-307	80	60	85	205	25	60	170	20	15	12	108	39	5	69	11	62	70,5
SES509-L	SNL 509	85	60	85	205	25	60	170	20	15	12	109	30	5	67	12	56,5	64,5
SES209-L	SNL 209	85	60	85	205	25	60	170	20	15	12	109	30	5	67	12	67	75,5
SES510-608-L	SNL 510-608	90	60	90	205	25	60	170	20	15	12	113	41	5	72	12	62	70,5
SES210-L	SNL 210	90	60	90	205	25	60	170	20	15	12	113	41	5	72	12	72	80,5
SES511-609-L	SNL 511-609	100	70	95	255	28	70	210	24	18	16	128	44	5	77	12	67	75,5
SES211-L	SNL 211	100	70	95	255	28	70	210	24	18	16	128	44	5	77	12	77	85,5
SES512-610-L	SNL 512-610	110	70	105	255	30	70	210	24	18	16	134	48	5	87	12	72	80,5
SES212-L	SNL 212	110	70	105	255	30	70	210	24	18	16	134	48	5	87	12	87	95,5
SES513-611-L	SNL 513-611	120	80	110	275	30	80	230	24	18	16	150	51	5	92	13	77	85,5
SES213-L	SNL 213	120	80	110	275	30	80	230	24	18	16	150	51	5	92	13	92,5	101
SES214-L	SNL 214	125	80	105	275	30	80	230	24	18	16	158	39	5	84,5	15	112	120,5
SES515-612-L	SNL 515-612	130	80	115	280	30	80	230	24	18	16	156	56	5	97	13	87	95,5
SES215-L	SNL 215	130	80	115	280	30	80	230	24	18	16	156	56	5	97	13	102,5	111
SES516-613-L	SNL 516-613	140	90	120	315	32	95	260	28	22	20	177	58	5	102	13	92,5	101
SES216-L	SNL 216	140	90	120	315	32	95	260	28	22	20	177	58	5	102	13	108	116,5
SES517-L	SNL 517	150	90	125	320	32	95	260	28	22	20	183	61	5	107	13	97,5	106
SES217-L	SNL 217	150	90	125	320	32	95	260	28	22	20	183	61	5	107	13	112	120,5
SES518-615-L	SNL 518-615	160	100	140	345	35	100	290	28	22	20	194	65	5	122	13	102,5	111
SES218-L	SNL 218	160	100	140	345	35	100	290	28	22	20	194	65	5	122	13	120	128,5
SES519-616-L	SNL 519-616	170	100	145	345	35	112	290	28	22	20	212	68	6	125	14	131	141
SES520-617-L	SNL 520-617	180	110	160	380	40	112	320	32	26	24	218	70	6	140	14	137,5	147,5
SES520-617-L	SNL 520-617	190	110	155	380	40	112	320	32	26	24	229	74	5	134,5	15	120	128,5
SES522-619-L	SNL 522-619-L	200	120	175	410	45	125	350	32	26	24	242	80	6	155	14	147,5	157,5
SES524-620-L	SNL 524-620	215	120	185	410	45	140	350	32	26	24	271	86	6	163	15	157,5	167,5
SES526-L	SNL 526	230	130	190	445	50	150	380	35	28	24	290	90	6	168	15	167,5	177,5
SES622-322-L	SNL 622-322	240	130	185	450	50	150	390	35	28	24	298	90	6	160,5	18	147,5	157,5
SES528-L	SNL 528	250	150	205	500	50	150	420	42	35	30	302	98	6	183	15	177,5	187,5
SES624-324-L	SNL 624-324	260	160	190	530	60	160	450	42	35	30	321	96	6	165,5	18	157,5	167,5
SES530-L	SNL 530	270	160	220	530	60	160	450	42	35	30	323	106	6	198	15	192,5	202,5
SES532-L	SNL 532	290	160	235	550	60	170	470	42	35	30	344	114	6	213	15	202,5	212,5

2, 3, 5 and 6 series Split plummer block housings

SKF SNL

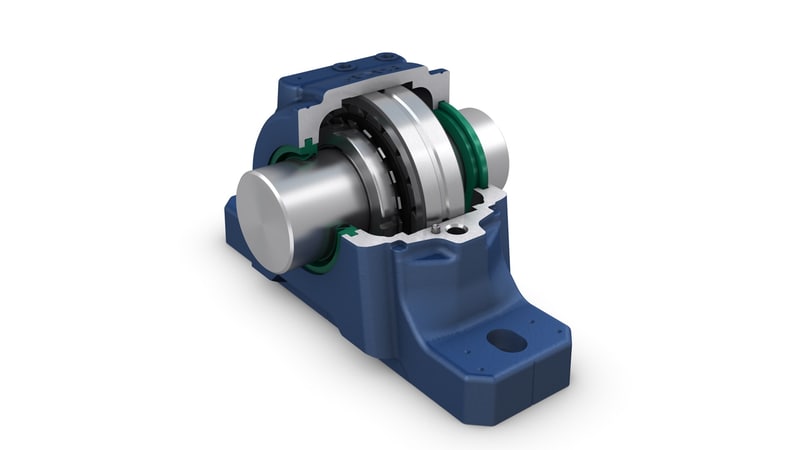

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

FAG SES

Plummer block housings SES represent a completely new generation of housings. Through the systematic further development of the proven FAG plummer block housings, Schaeffler can offer even greater efficiency and cost-effectiveness for machinery and equipment. The unique housing design increases the life of the bearings fitted in the housing. This is due to the optimised load distribution in the bearing achieved through the interaction of the bearing geometry and housing geometry under load.

Disclaimer: Always (double)check factory datasheet (we provide the url to the factory data, in each product page)

Artikelnummer: SKF-SNL205 Categorie: Bearing housings

Beschrijving

Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage

Link to SKF OPC & CAD data

Aanvullende informatie

Gewicht	1,387 kg
Afmetingen	7,5 × 16,5 × 6,7 cm
Structure group name	Bearing housings
Short description	3 , 5 and 6 series , Split plummer block housing SNL 2
Brand	SKF
Pack Code	Single package
EAN code	7316571185187
Pack gross weight	1.387 kg
Pack height	75 mm
Pack length	165 mm
Pack width	67 mm
Pack volume	829.125 cm3
Product net weight	1.387 kg
Products per pack	1
UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels.	31-17-15-19
UNSPSC name	Bearing blocks or housings
eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels.	23-05-17-01
eClass name	Plummer block housing
Sealing	Without
Material, housing	Cast iron
Bearing housing seal type	Without
Centre distance bolt holes Distance between attachment bolts, also known as Dimension J:	130 mm
Centre height (pillow block) From the base to shaft centerline height. One of the most important dimensions when choosing the correct pillow/plummer block	40 mm
Fastening bolt hole type	With holes (unspecified type)
Housing configuration	Two-piece
Housing type	Plummer (pillow) block
Mounting arrangement	Through shaft/Shaft end
Number of bolt holes	2
Seating diameter	52 mm
Housing lubrication feature	Grease
Attachment bolt size	12 mm
