Oorspronkelijke prijs was: € 436,72.€ 196,52Huidige prijs is: € 196,52. incl.: € 237,79
TSN519S SKF | EAN: 7316571143842 | (GTIN14: 07316571143842)
2 op voorraad
Binnen enkele seconden geverifieerd om op factuur te kunnen betalen.
SNL housing seals are the first barrier against contamination. Some housings can accommodate different types of seals, while other housings require a specific sealing solution. For highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.
| Gewicht | 1,527 kg |
|---|---|
| Afmetingen | 14,8 × 15 × 3,7 cm |
| Structure group name |
Bearing housing accessories |
| Short description |

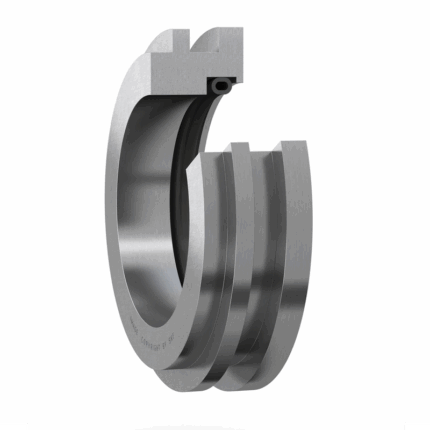

Labyrinth seal |
| Brand |
SKF |
| Pack Code |
Single package |
| EAN code |
7316571143842 |
| Pack gross weight |
1.527 kg |
| Pack height |
148 mm |
| Pack length |
150 mm |
| Pack width |
37 mm |
| Pack volume |
821.4 cm3 |
| Product net weight |
1.495 kg |
| Products per pack |
1 |
| UNSPSC code UNSPSC is a taxonomy of products and services for use in eCommerce, managed by GS1 US. It is a four-level hierarchy coded as an eight-digit number, two digits for each of the four hierarchical levels. |
31-17-15-19 |
| UNSPSC name |
Bearing blocks or housings |
| eClass code A eClass-code is a worldwide reference-data standard for the classification and unambiguous description of products and services established in industry, commerce, trade, and the service sector. eClass consists of a four-level hierarchy of classification classes (i.e. a tree structure). 8-digit class code (in ECLASS called: CodedName) consists of two digits for each of the four hierarchical levels. |
23-05-17-90 |
| eClass name |
Bearing housing (unclassified) |
| Bore diameter Inner diameter of the bearing |
85 mm |
| Outside diameter |
138.5 mm |
| Width |
24 mm |
| Sealing |
Without |
| Accessory type |
Housing seal |
| Shaft diameter |
85 mm |
| Afmetingen | ||
| Feature Name | Value | |
|---|---|---|
| Buitendiameter | 138.5 mm | |
| Asdiameter | 85 mm | |
| Huisgroef diameter | 141 mm | |
| Breedte | 24 mm | |
| Eigenschappen | ||
| Feature Name | Value | |
| Type accessoire | Huisafdichting | |
| Type afdichting | Labyrint | |
| Materiaal | Staal met siliconenelement | |
| Logistiek | ||
| Feature Name | Value | |
| Nettogewicht van het product | 1.41 kg | |
| eClass code | 23-05-17-90 | |
| UNSPSC-code | 31171519 | |
| Beschrijving | Waarde | |
|---|---|---|
| Materiaal | Staal met siliconenelement | |
|
Technische tekening SKF-TSN519-S |
||
| Afmetingen | ||
| Parameter | Waarde | Beschrijving |
| da | 85 mm | Asdiameter |
| Dc | 141 mm | Diameter afdichtingsgroef |
| D | 138.5 mm | Buitendiameter |
| B | 24 mm | Breedte |
| c | 14 mm | Afstand tot zijvlak |
